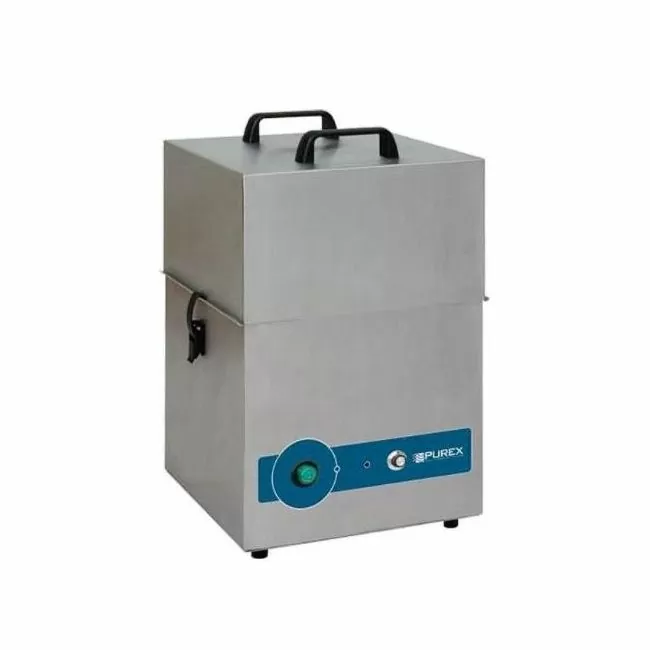

FumeCube Max 230V Basic No arms, 072115
MPE-072115 FumeCube Max 230V
*Note: 230 VAC units (MPE-072115) take 4 to 6 weeks when they are not in stock. Please request a quote and ask for delivery time.
Includes: Pre-Filter F8/F9 Composite 111124, Main Filter Type (SELECT): HEPA/Chemical (std) 110507 or Chemical 110504
Optional: Hose Kit 1, 2, 3
FumeCube Max brochureExport Notes: HTS Code #: 8421.39.8015, Made in the UK-England
Freight Class: 125, NMFC# 069100-03
(MPE-072115 FumeCube Max 230V) .
Features and Benefits
Visual and audible filter blocked warning alerts the operator when a filter starts to block and filter should be changed. This would avoid any down time
Varicolor filter blocked warning system
LED filter status: Green indicates the filter is safe for use, yellow indicates when the filter is nearly full and Red highlights when the filter needs replacing.
Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
Adjustable airflow
Operates worldwide with no loss of performance
Low capital and running costs
Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
Activated carbon filtration removes harmful gas
Simple to install and quiet in operation
Easy to relocate
Precision made from Stainless steel
Remote interface capability
Widely used in laser and electronics industries.
Specifications:
Cabinet Height: 493 mm
Cabinet Width: 308 mm
Cabinet Depth: 330 mm
Cabinet Weight: 14 kg
230v – Wattage: 0.14 kW
Multivoltage – Wattage: 0.21 kW
Frequency: 50 Hz/60 Hz
MPE-072115 FumeCube Max,
230V, For dual-arm inlet, NO ARMS and NO connection KIt included
*Note: 230 VAC units (MPEF-072115) take 4 to 6 weeks when are not in stock. Please request a quote and ask for delivery time.
Export Notes: HTS Code #: 8421.39.8015, Made in the UK-England
Freight Class: 125, NMFC# 069100-03
Features and Benefits
- Visual and audible filter blocked warning alerts the operator when a filter starts to block and filter should be changed. This would avoid any down time
- Varicolor filter blocked warning system
- LED filter status: Green indicates the filter is safe for use, yellow indicates when the filter is nearly full and Red highlights when the filter needs replacing.
- Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
- Adjustable airflow
- Operates worldwide with no loss of performance
- Low capital and running costs
- Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
- Activated carbon filtration removes harmful gas
- Simple to install and quiet in operation
- Easy to relocate
- Precision made from Stainless steel
- Remote interface capability
- Widely used in laser and electronics industries.
Specifications
- Cabinet Height: 493 mm
- Cabinet Width: 308 mm
- Cabinet Depth: 330 mm
- Cabinet Weight: 14 kg
- 230v – Wattage: 0.14 kW
- Multivoltage – Wattage: 0.21 kW
- Frequency: 50 Hz/60 Hz
