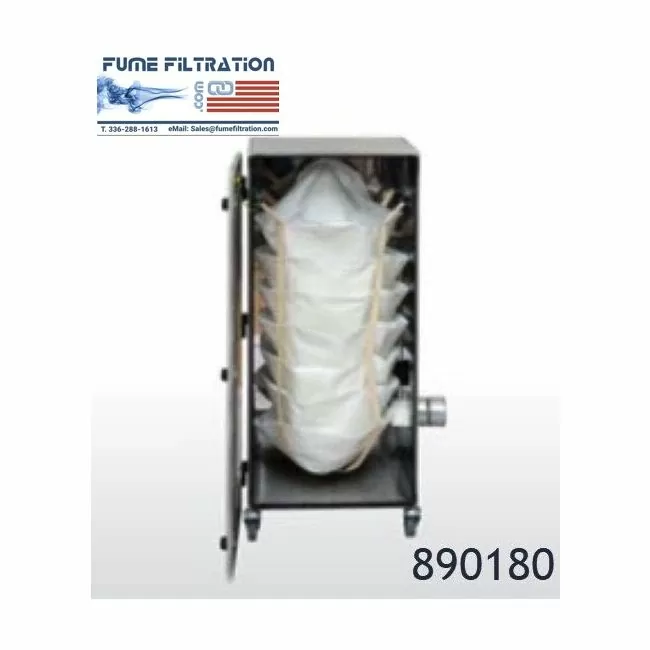

890180 Purex Cascade In Line
PUREX, Cascade, In-Line Filter for 400i/800i
Item code: MPEF-890180
Size: Ship Dim´s: 25"x 25"x 51"
Weight: 95 lbs
MUST ship Truck Freight
Box on a Pallet 40 kg,
Cascade, in-line filter for 400i/800i comes with 100186 (100mm) connection kit, includes filter 111107 ~F7 (Reusable) or 111117 F8/F9 (Single use).
The Cascade Box is fitted with a silicone vacuum sensing tube.
The tube should be connected to the inlet on all vacuum machines e.g.
It should not be connected on volume machines.
DIM's: Box on a Pallet 95Lbs\35Kg, 25"x25"x51" (66x66x130cm)
MUST ship Truck Freight
Inline Filters
Purex Cascade inline filters have been designed for applications that produce a large volume of particulates which would quickly blocked other filters.
For example, continuous engraving of rubber, wood and some plastics can rapidly clog normal extractor filters leading to excessive replacement costs. Recognizing the problem of consumable filter costs, Purex International has designed the 'Cascade', a unique multi pocket filter with an innovative concentric cone design.
The Cascade sits in its own cabinet and acts as the first stage of filtration. Large particles and other containments are captured by the Cascade, the air (free of large particles) is then routed to the Purex fume extractor where the Labyrinth pre-filter and main Hepa/Chemical filters clean the air of remaining particles and harmful gasses.
With the large particles removed by the Cascade, the filter life of the Labyrinth and Main filters are greatly extended. The Cascade dramatically reduces the life time costs of consumable filters.
The Cascade features a special media surface that allows particles to collect without sticking. When the Cascade appears to be blocked, as evidenced by an alarm, the operator simply shakes the Cascade to dislodge any particle build up and the filter can be used again.
When the Cascade is finally full the operator can quickly and easily remove, empty and re-use the filter many times over
The Cascade Inline Unit acts as an additional pre-filter in applications where large amounts of particles are produced.
Note: Vacuum or Volume The Cascade Box is fitted with a silicone vacuum sensing tube. The tube should be connected to the inlet on all vacuum machines e.g. Xbase, Alpha and Digital Tip and Arm Applications. It should not be connected to volume machines.
