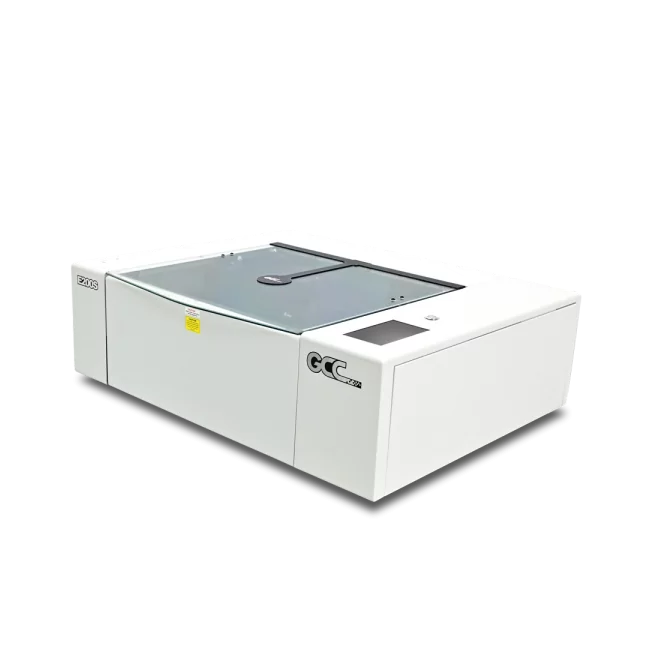

E200s Desktop 40-watt Glass Tube Laser Engraver with Chiller & Windows/MAC Drivers

Be the first to review this product

$0.00

Item code: MGL-E200s
Weight: 190 lbs

Availability:

In stock

SKU

126300010G2

Features

	Multifunction User Interface Multifunction user interface for both beginners and advance users.
	Unmatchable Output Quality GCC E200 takes your engraving and cutting to a level beyond other desktop laser engravers.
	High Throughput for Unlimited Imagination 20ips Processing speed with DC servo motor to boost productivity while maintaining precision.
	Live Camera Preview E200’s on board camera allows you to preview your design to make positioning simple and easy
	Free Bundle with GCC Materials to Start Your Business with Ease Every E200 desktop laser engraver comes with free GCC Materials with barcode stickers. Camera can read the QR code and automatically set up the parameters according to different materials. To purchase more laser materials, you are welcome to visit www.gccwebshop.com
	7” Large Touch Panel With colorful intuitive 7” touchscreen interface, E200 desktop laser engraver can bring your inspiration to life.
	Standard Water Chiller Allows For High Production E200 desktop laser engraver comes with a standard water chiller to ensure machine efficiency.
	Stamp Mode With Shoulder Level Function E200 stamp mode with shoulder level function enables you to produce a professional stamp easily.

Specs

E200	CO2 40W
Working Area	510 x 330mm
Max. Part Size (W x L x H)	525 x 340 x 20mm (with grid cutting table)
Max. Part Size (W x L x H)	493 x 341 x 95mm (remove grid cutting table)
Max. Working Speed	20 IPS
CCD Camera	Standard
Working Table	Standard grid cutting table
Driver	DC servo motor
Focal Lens	Standard 1.5”
Max. Cutting Thickness	10mm
Control Panel	7” touch screen
Connection	Wi-Fi, USB, Ethernet
Dimensions (W x L x H)	915 x 780 x 300mm
Optional	Rotary attachment, odor reduction, air compressor
Air Exhaust System	External exhaust system with minimum flow rate 300 m3/h (10594 ft3/h) is required,2,500PA negative pressure (PURE-AIR PA-300 @ 4" exhaust port)

*Speed is not equal throughput. See dealer or visit http://www.gccworld.com for more details.
Specifications are subject to change without prior notice.
*The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.
