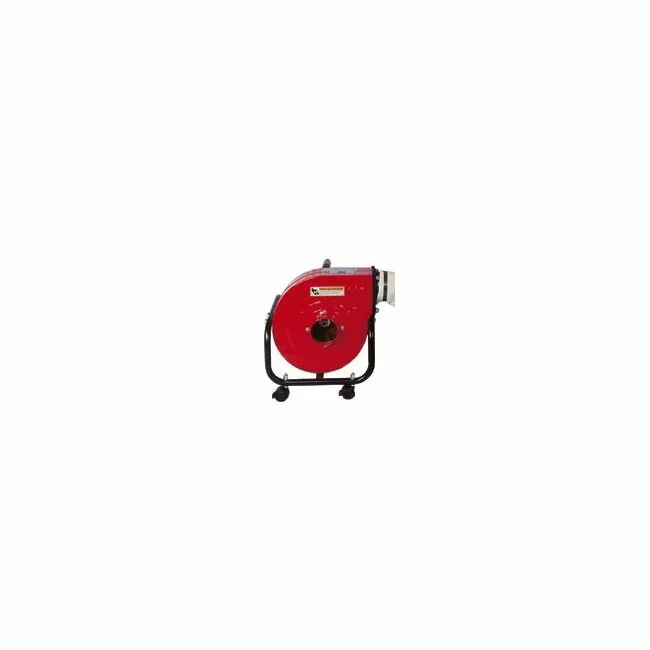

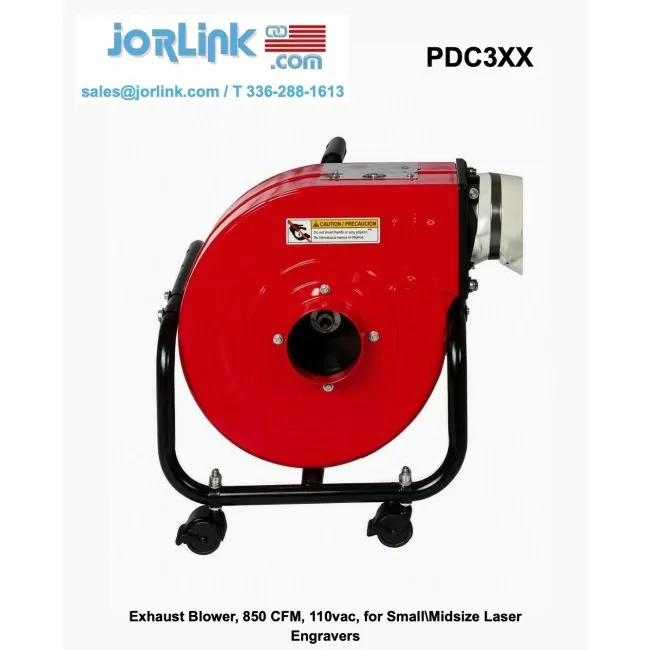

Exhaust Blower, 850 CFM, 110vac, for Small\Midsize Laser Engravers
Item code: MGA-PDC3XX
Weight: 30 lbs
SPECS: 850-914 CFM, 62db, 110vac, 4" In\\Outlet with Two (2) Years Manufacturer's Warranty
* Suitable for Small to Midsize Laser Systems up to 29"Table Size
** Wired for 110vac, this can also be re-wired for 220vac with new plug by client
*** Recommend to Add: Hose, 4" x 25' ft Ultra-Flexible Plastic
DIM's: 30-lbs @ 20"x18"x18"
This Portable Dust Collector - This compact dust collection / air handling unit with a powerful 1-1/2HP motor to move air over 850 CFM.
DC3 Collector style - Motor Blower Only - no bag or hose. You will find numerous uses for this portable dust collection/air handling unit. It uses a compact but powerful 1-1/2HP motor to move air to over 850 CFM. Light-weight and portable at less than 50 pounds.
| Specification | Description |
| Style: | Motor Blower |
| Portability: | Portable |
| Nominal Voltage: | 110220 |
| Phases: | 1 |
| Collector Footprint: | 14" x 14" |
| Height (inches): | 16.5 |
| Sound Rating db: | 62db |
| Max Static Pressure (inches): | 8.5 |
| Max Airflow through collector (CFM): | 850 |
| Running Amps: | 16 @ 110V |
| Horsepower: | 1.5 |
| Main Inlet Size (inches): | 4 |
| Impeller Size (inches): | 9 |
| Impeller Material: | Steel |
| Category: | Motor Blowers |
