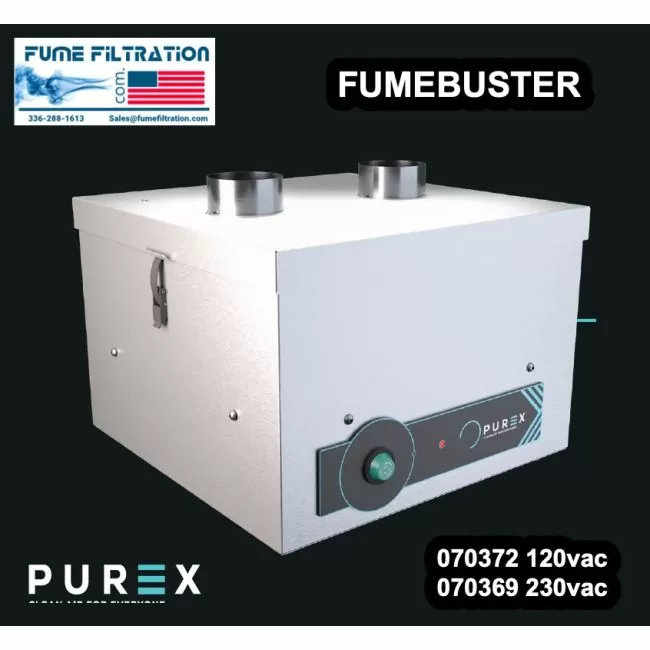

FumeBuster PUREX High Volume 120v , 070372

FumeBuster  Extraction-High Volume, 120vac

Item code: MPE-070373.120

SHIP Dim's 32 kg/70 Lbs  20x20x16"
Weight: 70 lbs

Download pdf Fume buster brochure

FumeBuster  Extraction-High Volume, 230v

MPEF-070369.230

Coming Soon.



SKU
070372
This product is fulfilled by seller

MPE-070372 , FumeBuster  Extraction-High Volume, 120vac (MPEF-070369 230vac)

Soldering & electronics manufacturing, for solvent applications

SHIP Dim's 32 kg/70 Lbs  20x20x16"
Cabinet Dim's H14"x W17"xD16" 55Lbs

Includes:

  • 1 x Main Filter MPEF-110531 HEPA CHEMICAL
  • 1 x Pre-Filter Pad F5  MPEF-200522 (Single)
  • 1 x Port Blank (530430), 1 x Power Cable
  • 1 blanking cap
  • Manual

Note: Connection Kit sold separately, client must select it from the brochure.

Filters are available for solder or chemical fume. Available with Conical Cowls, Plenum Cowls, or Cleancab Extraction Cabinets.

Features

Visual and audible filter block warning alerts the operator when a filter blocks and should be changed

  • Filter blocked alarm and LED
  • Low capital and running costs
  • Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
  • Activated carbon filtration removes harmful gases
  • Simple to install and quiet in operation
  • Easy to relocate
  • Precision made from Stainless steel
  • Widely used in the electronics industry.

Specifications

  • Cabinet Height: 350 mm
  • Cabinet Width: 425 mm
  • Cabinet Depth: 415 mm
  • Cabinet Weight: 25 kg
  • 120v – Wattage: 0.32 kW
  • 230v – Wattage: 0.32 kW
  • Frequency: 50 Hz/60 Hz

Purex Certification Documents

View the documents below. To print a document, open it using the link provided, then select the PDF viewer’s print button.

Digital — Certification Record 134391

Open Digital Certification / Print

Analog — Certification Record 131748

Open Analog Certification / Print
