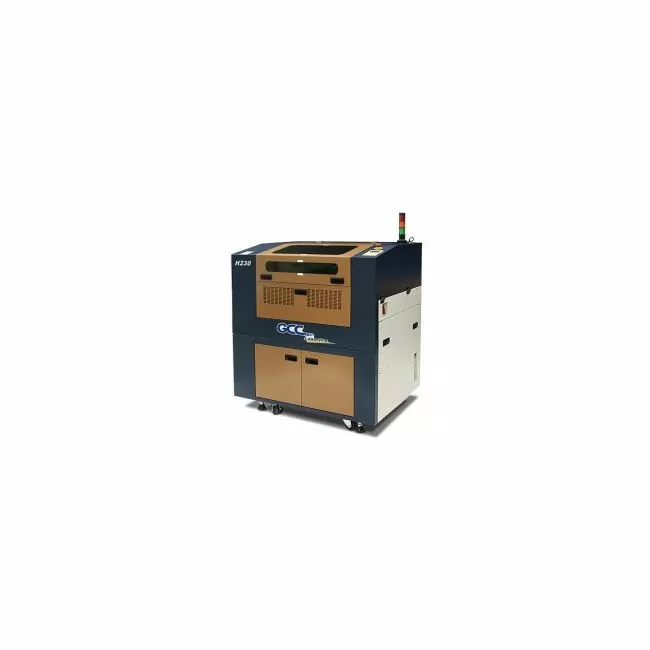

H230

RoHS Compliance

All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free).  GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.

Large area marking

Integrated galvanometer scan-head on an XY gantry moving system allows marking on max. 600 x 400 mm object tray in one pass, and eliminates system integration.

SmartPIN™ AutoFocus (Patented)

The plug and play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality in the lasering process.

SmartLID™ (Patented)

An innovative lid that opens from both ends allowing easier access and daily maintenance.

Emergency Stop

Big red button located on the top of the machine allows operators to stop the laser and the lens carriage immediately to provide maximum safety.

Drag-N-Play

An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage to the desired position to be engraved and press the start button to commence job.

G-Mark Library (Optional)

The programmable software can be used to customize functions by using VB scripts. All commands are received real time from a master PC and position offsets, rotating angles, and sequential marking can be set up. With G-Mark Library, the workflow of marking process can be optimized and simplified at the production line.

Split By Layer

Place your objects to be marked on the same layer based on the scan lens area and the Split By Layer function can perform group laser marking in order of layer to reaches max. 600 x 400 mm work area. This enables to use the scan area effectively, avoid unnecessary movements of the scan head carriage and greatly boost up the productivity.

Auto String

G-Mark Software with auto-generated S/N function, graphic tiling,1D, 2D, text, and logo marking

Reliable and Made in USA CO2 Lasers

The CO2 laser tube is the most critical component of a laser engraver. GCC LaserPro offers the best and most reliable CO2 laser available in the industry. Synrad CO2 lasers are built in the United States with the most advanced laser technology. The laser product is proven to be the most reliable brand with tens of thousands of installations all over the world. GCC LaserPro choose Synrad laser to be a partner. Leader always works with leader; both GCC and Synrad are dedicated to provide customer the best quality product. GCC and Synrad are your best choice.

On The Left

Glass Laser Tube

On The Right

Metal Laser Tube
