Main Board for Stika SV-8, SV-12
Item code: RRW700169020
Weight: 1 lbs

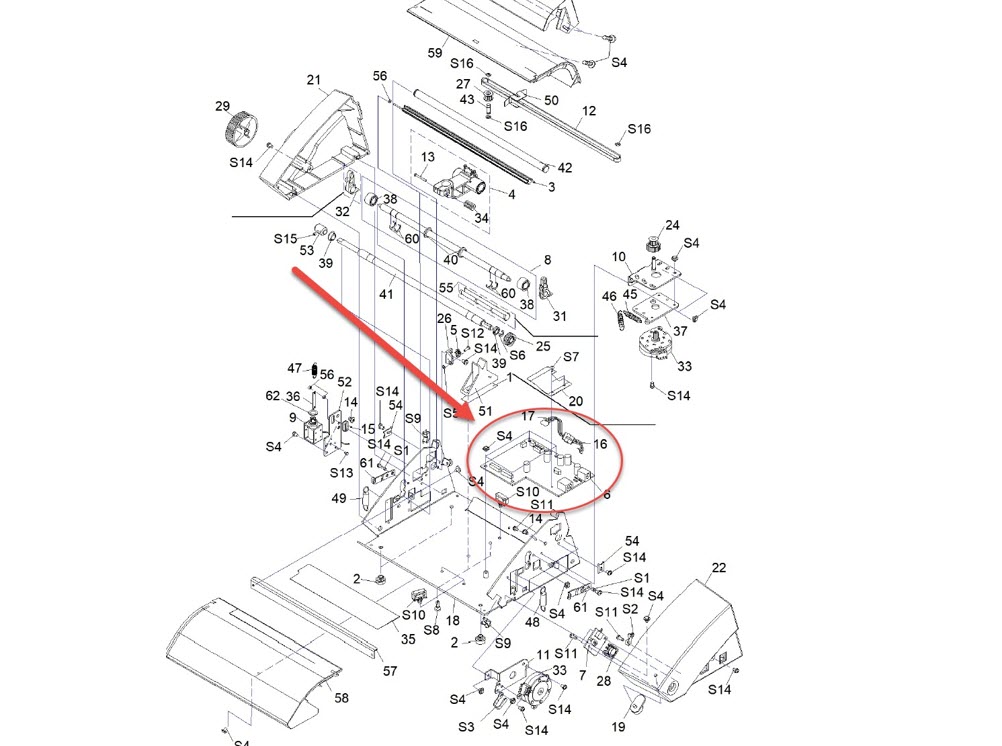

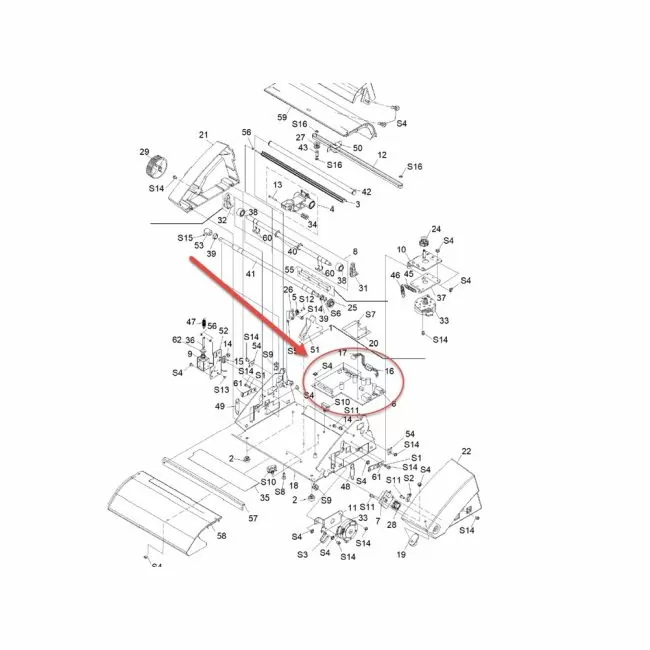

Main Board for Roland SV-12 & SV 8 Vinyl Cutter Stika
| MODEL | SV-15 | SV-12 | SV-8 | |
|---|---|---|---|---|
| Cutting method | Media-moving method | |||
| Maximum cutting area | 13-3/8 (X) x 39-5/16” (Y) [340 (X) x 1000mm (Y)] |
9-13/16 (X) x 39-5/16” (Y) [250 (X) x 1000mm (Y)] |
6-1/4 (X) x 39-5/16” (Y) [160 (X) x 1000mm (Y)] |
|
| Acceptable sheet size* | Width: 14-1/8 to 15” (360 to 381 mm) Length: 43-1/4” (1100mm) or less |
Width: 11 to 12” (280 to 305mm) Length: 43-1/4” (1100mm) or less |
Width: 7-13/16 to 8-7/16” (200 to 215mm) Length: 43-1/4” (1100mm) or less |
|
| Cutting speed | 7/16 to 3-7/8ips. (12 to 100 mm/sec.) |
7/16 to 1-9/16ips (12 to 40 mm/sec.) |
7/16 to 1-9/16ips (12 to 40 mm/sec.) |
|
| Acceptable material | PVC or label material of 0.004” (0.1 mm) or less in thickness. Total material thickness including the backing of0.012” (0.3 mm) or less | |||
| Interface** | >USB 1.1 | |||
| Power supply | Dedicated AC adapter input: AC 100V +/- 10%, 50/60Hz 1.7A Output: DC 19 V 2.1 A | |||
| External dimensions | 20-5/8(W) x 8-1/8(D) x 4-1/2”(H) [522(W) x 205(D) x 115(H)mm] |
17-3/8(W) x 8-1/8(D) x 4-1/2”(H) [440(W) x 205(D) x 115(H)mm] |
13-3/8(W) x 8-1/8(D) x 4-1/2”(H) [340(W) x 205(D) x 115(H)mm] |
|
| Power consumption | Aprox. 20W (including AC adapter) | |||
| Weight (unit only) | 7.3 lb [3.3 kg] | 6 lb. [2.7 kg] | 4.9 lb. [2.2kg]< | |
| Acoustic noise level | 60 dB (A) or less (According to ISO 7779) | |||
| Operating environment | Temperature: 41 to 104 °F [5 to 40 °C] Humidity: 35 to 80% non-condensing |
|||
| Included items | AC adapter, power cord, USB cable, replaceable blade protector, blade, blade holder, pin, material for test cuts, application tape for test cuts, Roland Software Package CD-ROM (CutStudio design software, plug-ins for CorelDraw 10, 11,12 and Adobe Illustrator 9, 10, CS, Stika Windows Navi utility), SV-15/12/8 user's manual | |||
*Depending on the type of material, lengths longer than 19-5/8” [500mm] may shift during cutting.
**Compatible with Windows 98 SE/Me/2000/XP and Mac OS 9 or later.
Three STIKAs
The STIKA comes in three models. The SV-8 accepts 8.5-inch wide media and cuts up to 6.2 inches wide. The SV-12 accepts 12-inch wide media and cuts up to 9.8 inches wide. The SV-15 accepts 12- or 15-inch media and cuts up to 13.3 inches wide. They all handle vinyl, paint mask, reflective vinyls, twill, heat transfer, and etching material.
Print/Cut Solution
In addition to cutting vinyl and other materials, the new STIKA makes an easy-to-use and cost-effective print/cut solution. Users print registration marks with their desktop printer, load the printed graphic into the cutter, send the file to the STIKA and it contour cuts the graphics. It's perfect for creating colorful POP displays, and iron ons.
CutStudio Software
Every STIKA ships with Roland CutStudio. This powerful design software lets you reduce, re-position, rotate, tile and mirror images. It enlarges images as crisp as original size and cuts TrueType fonts without outlining. CutStudio also supports BMP, JPG, STX, AI, and EPS file formats. Plugins for Adobe Illustrator (Mac and PC) and Corel Draw (PC) are also included.
Easy to Use
Making professional-looking graphics is a snap with the STIKA. Simply design your graphics with bundled Roland CutStudio software, peel away the excess vinyl, and apply. It’s that easy. You can even contour cut printed graphics using your desktop printer and the STIKA driver.
Connectivity
With a convenient USB port, the STIKA offers plug-and-play capabilities for both Mac and PC systems. The USB cable is included!
Roland Reliability
Roland cutters have earned worldwide reputation for reliable performance and outstanding results. Today, like all Roland products, they come with an international ISO certification. This signals Roland’s commitment to offering top quality products backed up with first-rate customer service and a wide variety of supplies and accessories.
Over the past 17 years, Roland has sold more than a quarter million vinyl cutters worldwide. Most of them are still in production today.
One-Year Limited Warranty
Every STIKA Desktop Vinyl Cutter is backed up by a one-year limited warranty covering manufacturer’s defects and malfunctions attributed to premature failure of individual components or the entire device. For complete terms and conditions, please visit the Roland Care page.
