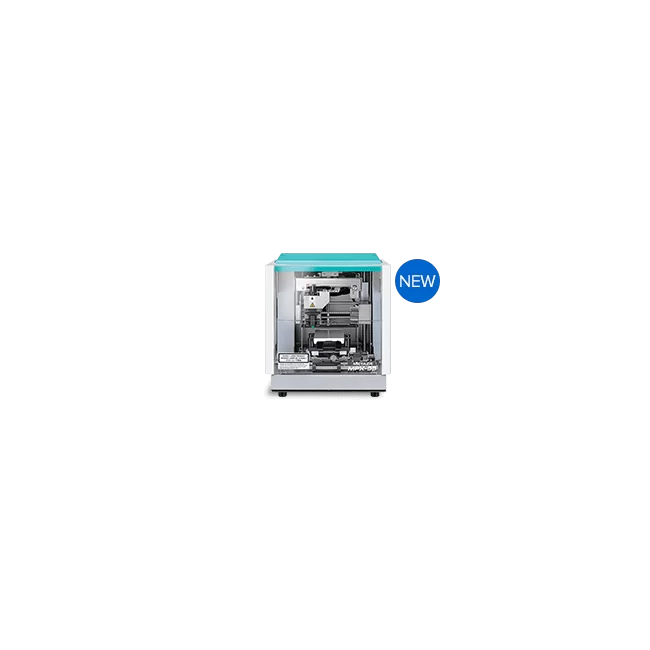

Metaza MPX-95 + Gift Kit
Item code: MPX-95-GK
Weight: 25 lbs
Impact Printers
Photo impact printer technology makes gift personalization and direct part marking of tools and medical instruments a clean, quiet and hassle-free experience. Affordable and effortlessly easy-to-operate, the MPX series of devices from Roland DG provide stunning results on metal materials that include titanium, platinum, silver, copper and gold. They are the perfect solution for gift personalization, industrial part marking, and ensuring UDI compliant medical instruments.
MPX-95 Photo Impact Printer with Gift Kit
-Imprint photos, text, and vector art onto metal giftware
-Precise, low-cost and easy-to-operate solution
-Features a selection of vises for quick set-up and personalization
-Removable base enables imprinting onto large items
-Runs quietly and safely in any kiosk, store or office
-Includes METAZA Studio software
Perfect for kiosk and gift shop applications, the new METAZA MPX-95 photo impact printer with Gift Kit is a low-cost, easy-to-operate solution for personalizing high-value metal items and making them even more unique and profitable.
| Model | MPX-95 | |
|---|---|---|
| Imprintable material | Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc. (Vickers hardness [HV] of the imprint surface must be 200 or less.) |
|
| Loadable material size | Using a base table + base plate: | Max. 3.9 in (W). X 7.9 in. (L) X 1.6 in. (H) (100 mm (W) X 200 mm (L) X 40 mm (H)) or 7.9 in. (W) X 3.9 in. (L) X 1.6 in. (H) (200 mm (W) X 100 mm (L) X 40 mm (H)) |
| Using a base plate only: | Max. 3.9 in. (W) X 7.9 in. (L) X 2.8 in. (H) (100 mm (W) X 200 mm (L) X 70 mm (H)) or 7.9 in. X 3.9 in. X 2.8 in. (200 mm (W) X 100 mm (L) X 70 mm (H)) *The above are for when the cover is closed. When the cover is open, there is no limit on how large the material can be, but the imprint area of the material must be placed within the imprint area. |
|
| Imprint area | Maximum imprintable area | 3.2 in. (W) X 3.2 in. (D) X 2.8 in. (H) 80 mm (W) X 80 mm (D) X 70 mm (H) |
| Recommended imprint area | 2.0 in. (W) X 2.0 in. (D) X 2.8 in (H) 50 mm (W) . 50 mm (D) . 70 mm (H) |
|
| Resolution | High resolution | 529 dpi |
| Photo | 353 dpi | |
| Text | 265 dpi | |
| Vector | 1058 dpi | |
| Imprint direction | Unidirectional imprinting or bidirectional imprinting (Selectable with Windows driver) | |
| Imprint speed (Default) | Photo | 2.0 in./sec (50 mm/sec) |
| High resolution/Text | 1.2 in./sec (33 mm/sec) | |
| Vector | 0.94 in./sec (24 mm/sec) | |
| Interface | USB | |
| Power requirements | Dedicated AC adapter | AC 100 to 240 V ±10%, 50/60 Hz |
| Main unit | DC 19 V, 1.2 A | |
| Power consumption | Approx. 21 W | |
| Operating noise | 70 dB (A) or less | |
| Operating temperature | 50 to 86°F (10 to 30°C) | |
| Operating humidity | 35 to 80% (no condensation) | |
| External dimensions | 11.3 in. (W) x 15.1 in. (D) x 12.2 in. (H) 286 mm (W) x 383 mm (D) x 308 mm (H) |
|
