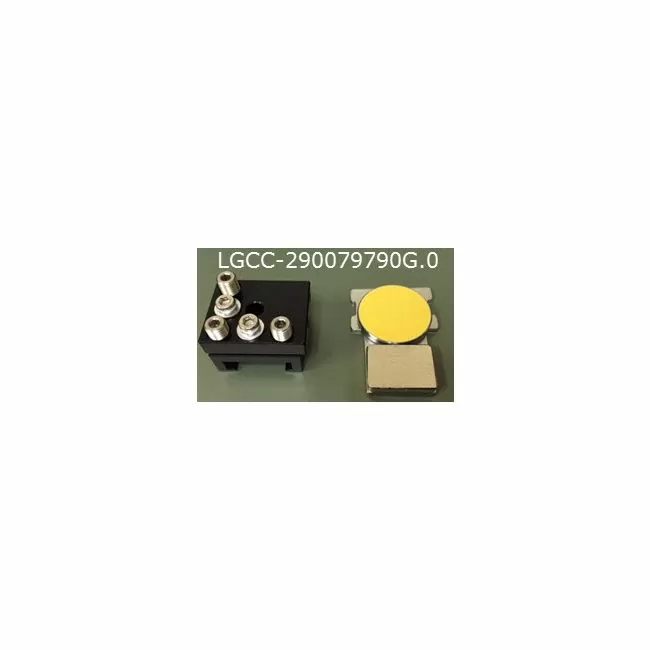

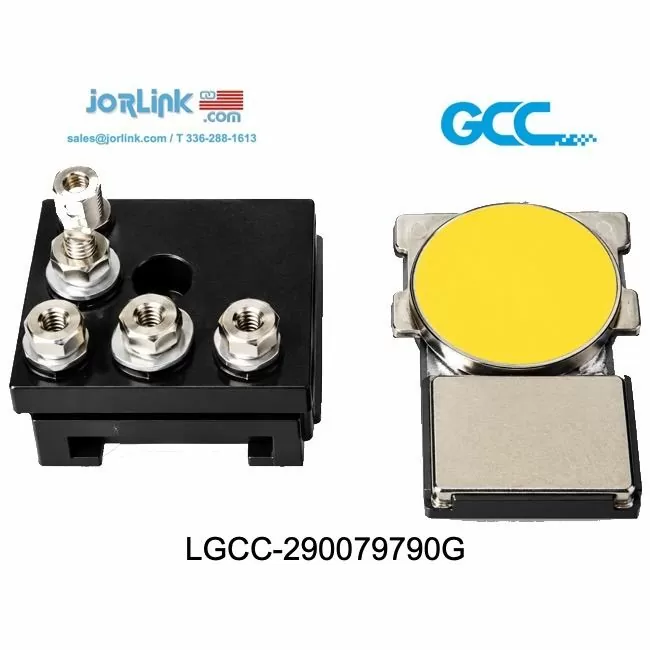

Mirror, #1, 1.0" Dia. Rectangular, Before Serial #: M50659 (C180, MIII, SLS, SI, SGLS, SGE/GX/E2, H230, H230CE, T&V Series)

Mirror, #1, 1" Diam-Round. with Prism Bracket (Explorer I, SLS, SI, GLS, SGX, SG, SI Option, Mercury III, H230, H230CS, replacement for #29003695G, #290077670G + 202003240G | for machines shipped from TWN before 2013 August, Before Serial # M50659)

PDF TECHNICAL BULLETIN INFO, MIRROR #! NOTICE:

Since the new mirror is circle and easier to produce and maintain, GCC has changed the mirror 1.

The change starts from machine serial number M95211.

The changed models: SI、GE、SLS、GLS、GX、MIII、H230

The changed laser tube wattages: 20V93、V30、30Vi、V40、T60、Ti60、60Ti93、80Ti93、80Ti、100T、100Ti、100Ti93

So for machine serial number older than M95211 (or invoice day earlier than August 01, 2013)and

customer need to order mirror 1 for replacement, distributors also need to order new mirror 1 bracket for first time.

The old and new mirror 1 can put on new mirror 1 bracket, but new mirror 1 cannot put on old mirror 1 bracket.
