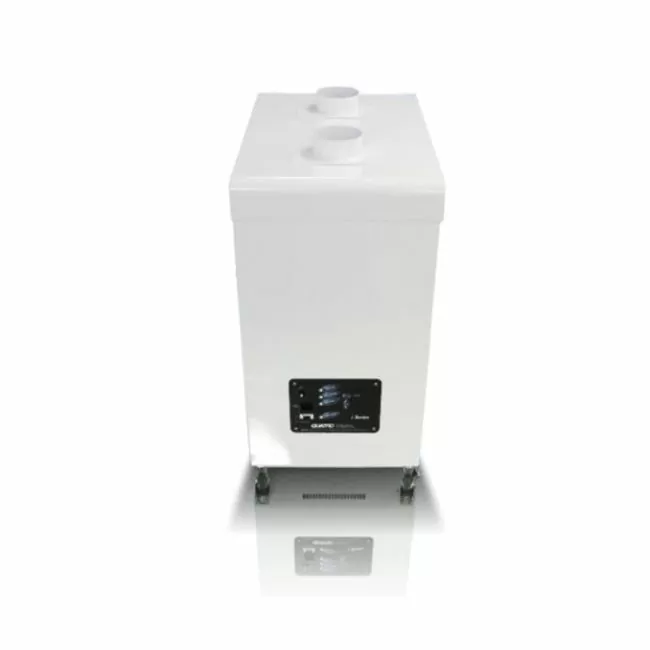

Quatro SPH 835 T44 S4 Multiple Station Laser Fume Extractor 230V. Brush Motor

Bottom Side Discharge

Brush Motor

SPH 800

• Twice as powerful as the SPH 400, this is our most powerful unit for medium to heavy duty laser applications
• Designed to fit into an application where direct capture from the source is possible the SPH uses high power blower motors to pull the air through 3 stages of filtration consisting of a pre-filter for large particulate, a certified HEPA filter to capture 99.97% of all particulate greater than 0.3 micron and a chemical filter with up to 80 lbs. (36kg) of odour and VOC treatment
• LaserBlue Gel seal guarantees NO BYPASS
• This unit is available in brushed and brushless versions with up to 560cfm.
• This unit has many options and can be customized for OEM applications
  Compact installation requiring no bulky and expensive ductwork
• Filters easily accessed and changed in less then 1 minute ( no tools required )
• Powder coated durable welded cabinet
• Recirculating purified air reduces heating and air conditioning cost
• Filters:  (2) F166 PAD, (2) F071, (2) F074, (2) AG097
• 230 volt, 2 x  4" inlets
• bottom grill discharge
• variable speed contro
• (3) AR176 Brush motors
• 8' of HD hose
