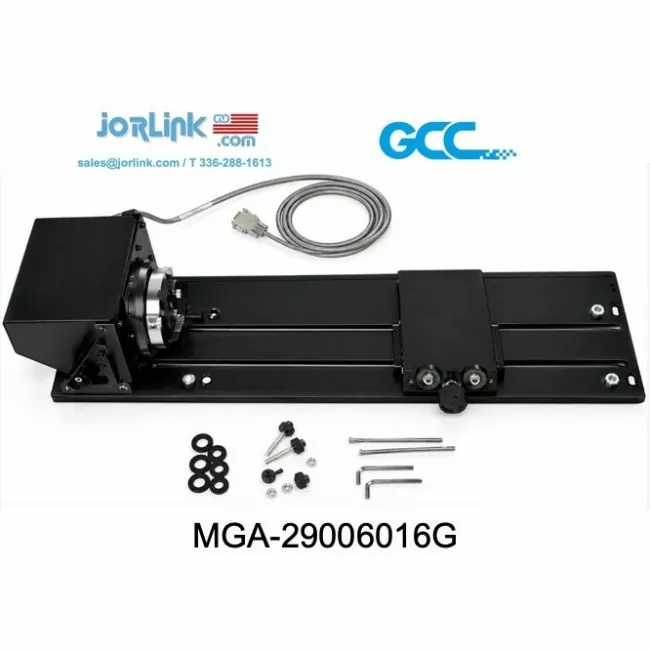

Rotary Attachment-Chuck for S400, Spirit, SLS, SGLS, SGLS-HYB, S290 Laser System
Item code: MGA-29006016G
Size: Ship DIM's: L31"xW13"xH12" @ 20-Lbs
Weight: 20 lbs
Rotary Attachment-Chuck for S400, Spirit, SLS, SGLS, SGLS-HYB, S290 Laser System is a handy tool used for laser engraving on cylindrical or spherical objects. In addition to the standard X, Y, Z axis, the rotary chuck allows for the fourth axis which rotates the object 360° to allow for engraving on cups, wine glasses, and even spherical objects. The diameter range of the to-be-engraved object is 0.5 mm to 120 mm and the max. length of the object is 410 mm. Its maximum weight should not exceed 4 kgs.
Specification information:
Maximum Length: 410 mm (16.14")
Maximum Loading Weight: 4 kg (8.8 lbs.)
Minimum Diameter: 0.5 mm (0.02 inches)
Maximum Diameter: 120 mm (4.7 inches)
HTS: 8466.94.8585
SHIP DIM's: L31"xW13"xH12" @ 20-Lbs
