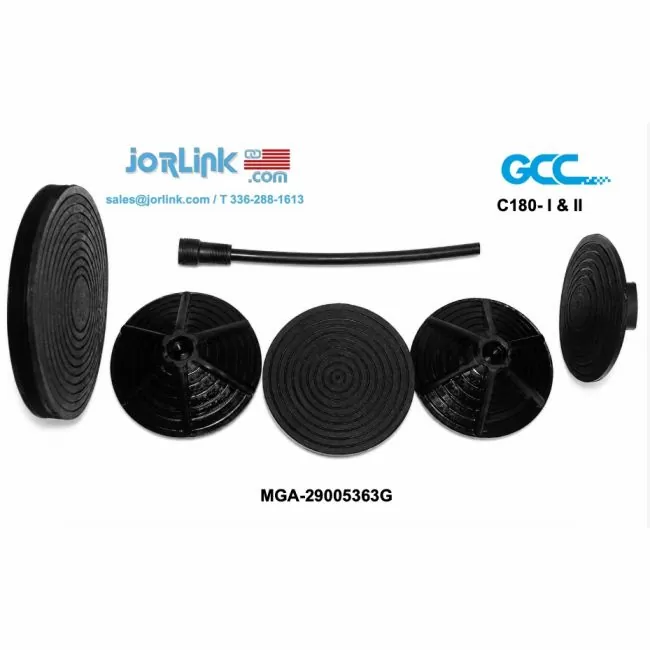

Rotary Attachment for GCC C180-I & II Laser
Item code: MGA-29005363G
Weight: 20 lbs
Rotary Attachment for GCC C180-I & II Laser
Engraving on cylindrical or spherical objects has always been considered to be complicated and problematic. These objects are difficult to pinpoint, and cannot rotate freely when engraving takes place, given that engraving is only possible on small or restricted areas. However, now through LaserPro's Rotary Attachment device, engraving on cylindrical and sphere-shaped objects will become simple and effortless.
LaserPro Application Lab had previously introduced Rotary Attachment in the showcase titled Sip A Drink From Your Own Personalized Glass Cup, but there are still users who are not familiar with the Rotary Attachment's capabilities. Therefore we will attempt to simplify the setup process and clarify positioning modes, advocating to ease the initialization phase for our users.
Moreover, we will exhibit steps to apply the Position Mode and demonstrate how to utilize its Driver functions to efficiently complete all settings. Users are no longer required to spend unwarranted time so as to modify required and precise positioning; they will be able to engrave on demand. We believe that all users will love this new and thoughtful addition.
Click Here to see C180 Rotary Attachment Setup.
Click Here to see Tennis Ball rotary laser engraved.

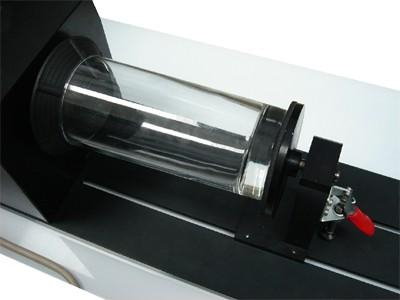

C180II’s rotary attachment.
|
Maximum Length |
250mm (9.8 inches) |
||
|
Maximum Loading Weight |
3 kg (6.6 lbs.) |
||
|
Minimum Diameter (Small Conical Fixture) |
12 mm (0.5" inches) |
||
|
Maximum Diameter (Small Conical Fixture) |
50 mm (1.9" inches) |
||
|
Minimum Diameter (Large Conical Fixture) |
90 mm (3.5" inches) |
||
|
Maximum Diameter (Large Conical Fixture) |
120 mm (4.7" inches) |
||
|
Maximum Outer Diameter |
176 mm (6.9 inches) |
||

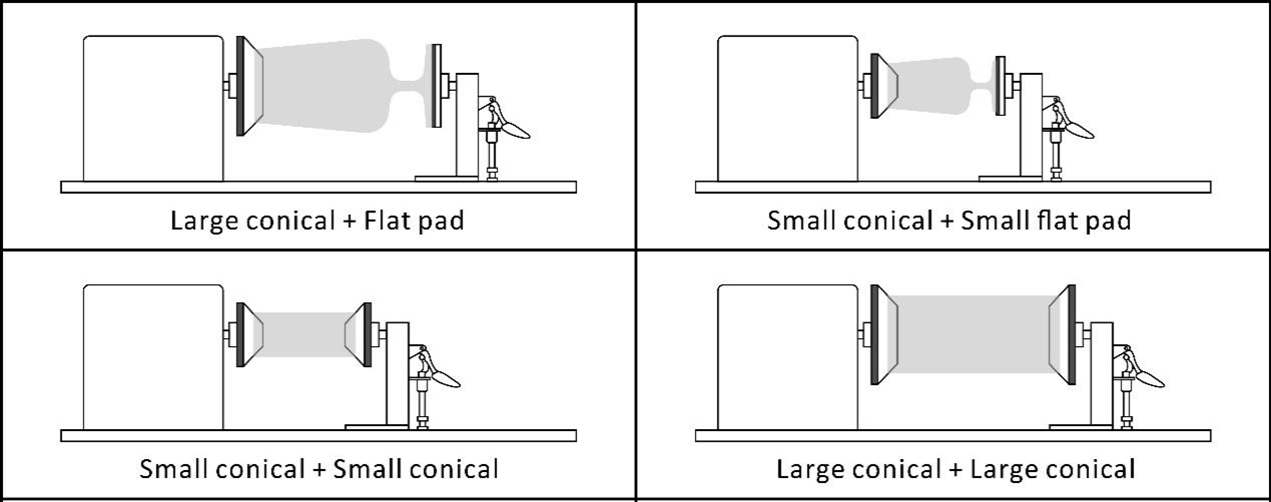

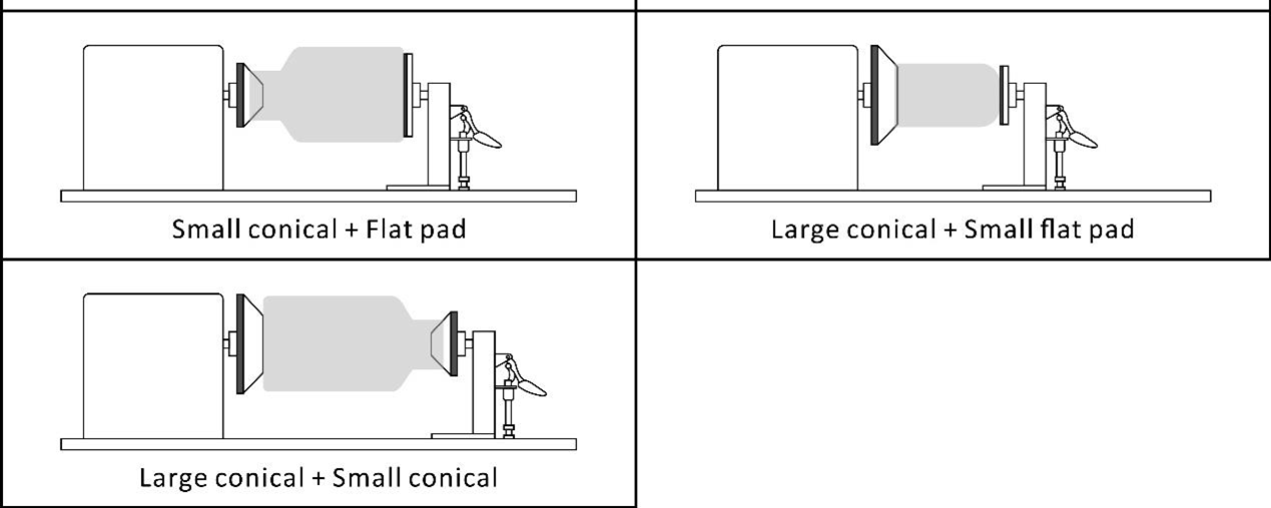

Exchange the Conical Fixtures:
Depending on the shape of work piece, you can exchange different designs of front and back fixtures to fit the materials as below illustration.
