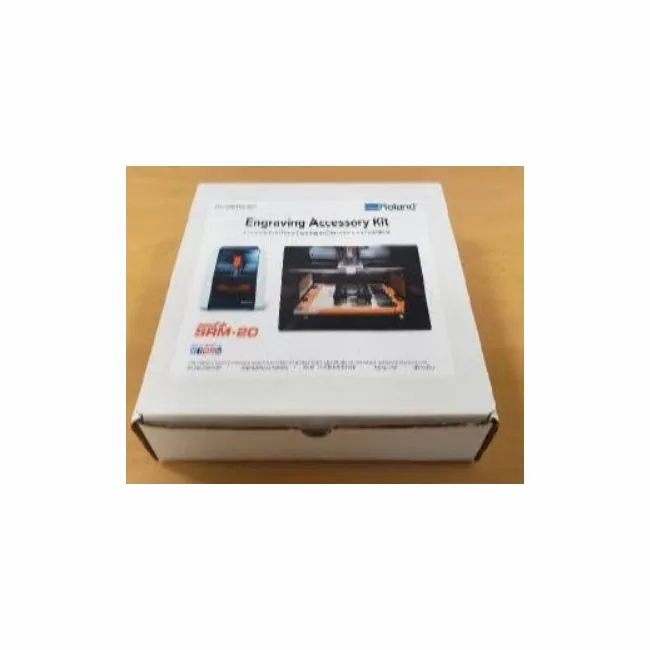

SRM-20 Accessory Kit
Item code: MR-SRM20ACCKIT
Weight: 5 lbs
SRM-20 Kit
Includes:

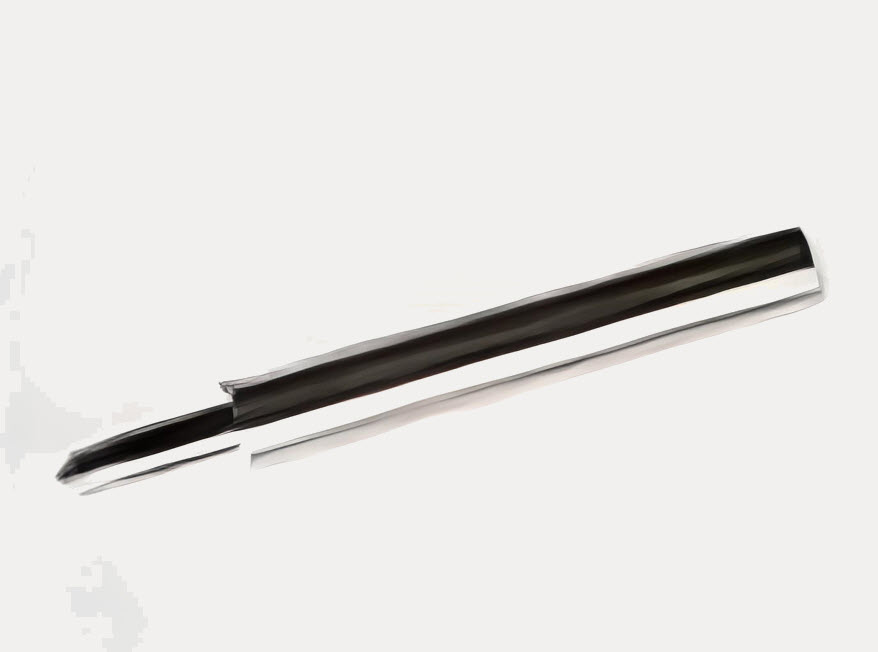

Spring-loaded tool enables for scribing on metal, with pressure averaged across the material surface.

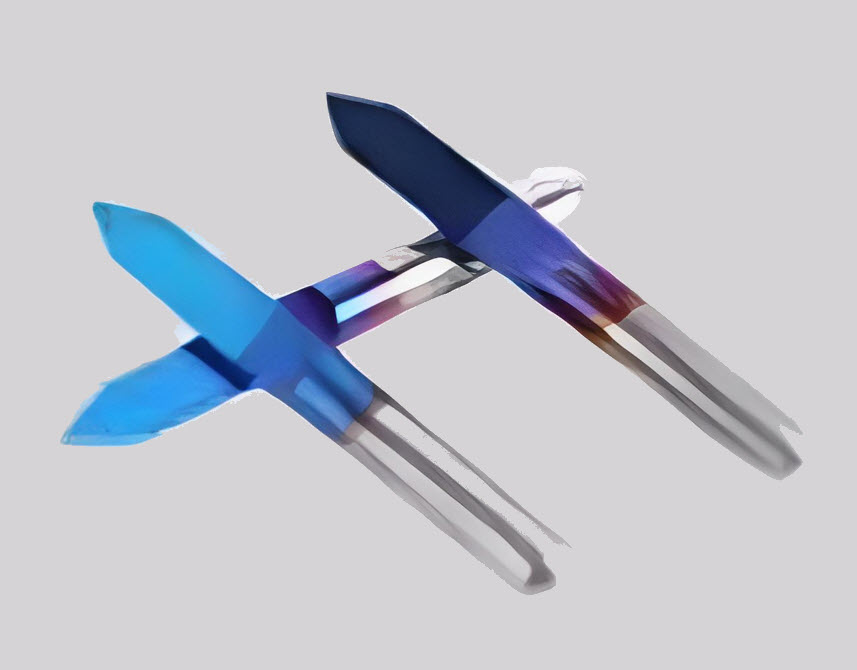

Short reach tooling to fit the SRM-20 spindle, used in conjunction with the 1/8” collets.
|
|
| Data Sheet | Engraving and Gift Making |
| MODEL | SRM-20 |
|---|---|
| Cuttable Material | Modeling Wax, Chemical Wood, Foam, Acrylic, Poly acetate, ABS, PC board |
| X, Y, and Z Operation Strokes | 8 (X) x 6 (Y) x 2.38 (Z) inches, 203.2 (X) x 152.4 (Y) x 60.5 (Z) mm |
| Workpiece table size | 9.14 (X) x 6.17 (Y) inches, 232.2 (X) x 156.6 (Y) mm |
| Distance From Collet Tip to Table | Maximum, 5.15 in (130.75mm) |
| Loadable Workpiece Weight | 4.4 lbs (2kg) |
| X-, Y-, and Z-Axis Drive System | Stepping motor |
| Operating Speed | 0.24 – 70.87inch/min, 6 – 1800mm/min |
| Software Resolution | 0.000039 inches/step (RML-1), 0.000039 inches/step (NC code), 0.01 mm/step (RML-1), 0.001mm/step (NC code) |
| Mechanical Resolution | 0.0000393 inches/step, 0.000998594 mm/step |
| Spindle Motor | DC motor Type 380 |
| Spindle Rotation Speed | Adjustable 3,000 – 7,000 rpm |
| Cutting Tool Chuck | Collet method |
| Interface | USB |
| Control Command Sets | RML-1, NC code |
| Power Requirements | Machine: DC24V, 2.5A, Dedicated AC adapter: AC 100-240V ±10%, 50/60Hz |
| Power Consumption | Approx. 50W |
| Operating Noise | During operation: 65 dB (A) or less (when not cutting), during standby: 45 dB (A) or less |
| External Dimensions | 17.76 (W) x 16.80 (D) x 16.78 (H) inches, 451.0 (W) x 426.6 (D) x 426.2 (H) mm |
| Weight | 43.2 lbs, 19.6 kg |
| Installation Environment | Temperature of 41 to 104 °F (5 to 40°C), 35 to 80% relative humidity (no condensation) |
| Included Items | USB cable, AC adapter, Power cord, Collet (6mm, .236 inches), Collet set screw, Spanners (7,10mm / 0.28, 0.39 inches), Hexagonal wrench (size 2,3 mm / 0.059, 0.12 inches), Positioning pins, Double-sided tape, Start-up page guidance card, Cutting tools not included. Imperial sized collets and cutting tools not included. |
| System Requirements | |
|---|---|
| Operating system (OS) | Windows 7/8/8.1 (32-bit/64-bit edition)* |
| CPU | Intel® Core 2 Duo or more (Core i5 or more recommended) |
| Memory (RAM) | 1GB (2GB or more recommended) |
| Video card and monitor | A resolution of 1,280x1,024 or more recommended |
| Free hard-disk space required as a working space |
100 megabytes or more recommended |
| Other requirements | Internet connection and web browser, Internet Explorer version 10 or more recommended |
SRM-20 Engraver Accessories
MILLING
| Part No. | Description | Price |
|---|---|---|
| EMB-125-2F-016 | .016" Ball End Mill | $38.99 |
| EMB-125-2F-016L | .016" Ball End, Mill Long | $38.99 |
| EMB-125-2F-031 | .031" Ball End Mill | $29.99 |
| EMB-125-2F-031L | .031" Ball End Mill Long | $38.99 |
| EMB-125-2F-063 | .063" Ball End Mill | $29.99 |
| EMB-125-2F-063L | .063" Ball End Mill Long | $43.99 |
| EMB-125-2F-125 | .125" Ball End Mill | $29.99 |
| EMB-125-2F-125L | .125" Ball End Mill Long | $43.99 |
| EMB-250-2F-250L | .250" Ball End Mill Long | $52.99 |
| EMF-125-2F-016 | .016" Flat End Mill | $29.99 |
| EMF-125-2F-016L | .016" Flat End Mill Long | $29.99 |
| EMF-125-2F-031 | .031" Flat End Mill | $29.99 |
| EMF-125-2F-031L | .031" Flat End Mill Long | $38.99 |
| EMF-125-2F-063 | .063" Flat End Mill | $29.99 |
| EMF-125-2F-063L | .063" Flat End Mill Long | $43.99 |
| EMF-125-2F-125 | .125" Flat End Mill | $29.99 |
| EMF-125-2F-125L | .125" Flat End Mill Long | $43.99 |
| EMF-250-2F-250L | .250in Flat End Mill Long | $52.99 |
| SM-20 | SRM-20 Spindle Motor | $104.99 |
| SS-20 | SRM-20 Spindle Unit | $259.99 |
| ZC-20-32 | 3.2mm- 1/8in SRM Collet | $64.99 |
| ZC-23-635 | Collet, 1/4" for EGX-350, MDX-40/A, SRM-20, DE-3 | $35.99 |
SRM-20, Engraving Accessory Kit for SRM-20
