Vision Express Engraver S5

Vision Express Engraver S5

Vision VE810 Engraver S5

$6,995.00

Product Code: MRV-VE810
SKU: VE810S

  • 8" x 10" Work Area
  • Max size part 14.5"L x any Width
  • NEW V-Touch multi functional touch screen
  • Includes aluminum T-slot table with 1" spindle clearance
  • Full-featured front panel with independent Z-Axis and spindle controls
  • Ethernet connection
  • A limited 1-year warranty

Availability:
In stock
SKU
VE810

Made In USA

HTS Code: 8465920091

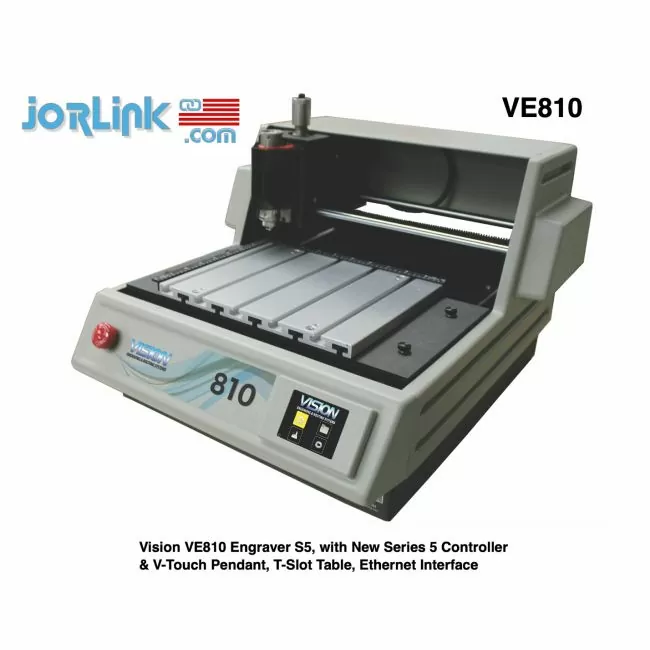

Vision VE-810 S5 Desktop Engraver

The Vision VE 810 S5 engraver offers a perfect blend of precision and flexibility for both newcomers and experienced users. Its compact footprint and robust capabilities make it well-suited for creating custom tags, jewelry, small signage, plaques, awards, and more. Featuring an 8" x 10" aluminum T-slot table, it simplifies the engraving of flat materials, while the innovative V-Touch Technology improves both workflow and ease of operation.

From metal and plastic to wood, the VE 810 S5 consistently delivers high-quality engraving, making it a dependable tool for a wide range of projects.

Video Online Demo (Click Here)

Vision VE-810 S5

V-touch multi-functional touch screen
Red laser pointer perfect for previewing placement before engraving
11/64" top-loading spindle
Independent Z-Axis and spindle controls
Automatic surface sensing
Quiet and efficient operation
Internal series 4 High-Speed Controller
Quick-lock vise and multi-mat
Minimal maintenance

Specifications:
Work Area - 8" x 10" (aluminum T-slot table) - maximum length 14"
Spindle Clearance - 1"
Spindle Type - 11/64" top-loading
Moving Speed - 2" per second maximum feed rate
Table Resolution - .0002"
Size (W x D x H) – 14.5" x 19" x 22"
Weight – 45 lbs
Software – Vision Expert, dongle included
Operating System - Windows
Interface – Ethernet
Power – 110/220V 2 Amp
