H-1325 LARGE FORMAT LASER CUTTING MACHINE

H-1325 LARGE FORMAT LASER CUTTING MACHINE

G-1325 LARGE FORMAT LASER CUTTING MACHINE

G-1325 LARGE FORMAT LASER CUTTING MACHINE

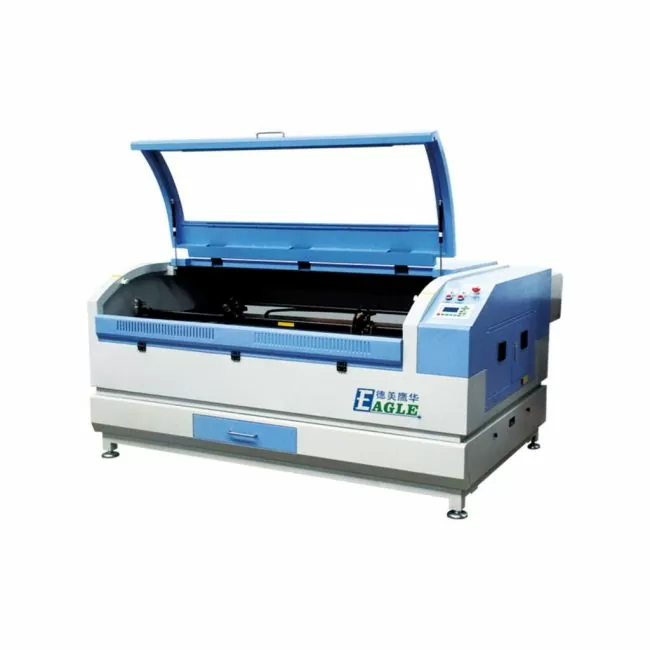

BF-1610 CO2 Laser Cutting Laser

Be the first to review this product
$15,600.00

Item code: BF-1610
Weight: 950 lbs

Availability:
In stock
SKU
BF-1610
Add to Wish List Add to Compare

The BF-1610 CO2 laser cutting machine, fixed working table, offers an economical solution for 60″ (1500mm) sheet material cutting and engraving of acrylics, cardboard, wood, textiles, two-color sign laminate, stone, and much more. Our laser machines are the most robust, accurate, and reliable on the market.

Which laser configuration is best for me?

You should choose single laser configuration if your primary needs is processing work pieces larger than half of the working table.

Dual laser systems include two laser heads, allowing you to cut or engrave twice as much material in the same amount of time. Each laser has an independent set of laser source, optics and power supply which you can enable or disable according to processing needs. The spacing between the heads can be adjusted at any time using just a screwdriver.

130W CO2 laser is the most cost effective choice for cutting (can cut acrylic up to 1" in thickness). 150W CO2 laser is best suitable for cutting ultra-thick materials (can cut acrylic up to 1-1/4" in thickness).

What about motor options?

With servo motors from world’s leading supplier, the laser head of the BF-1610 can move very fast at extremely high resolution. A step size of just 6.25μm gives the machine a resolution of over 4000DPI. In arbitrary-direction cutting, the head can accelerate at 2 m/s2 (0.2G). The BF-1610 with high quality stepper motors sacrifices only a small amount of performance.

100% Compatible with LightBurn Software

Print Driver

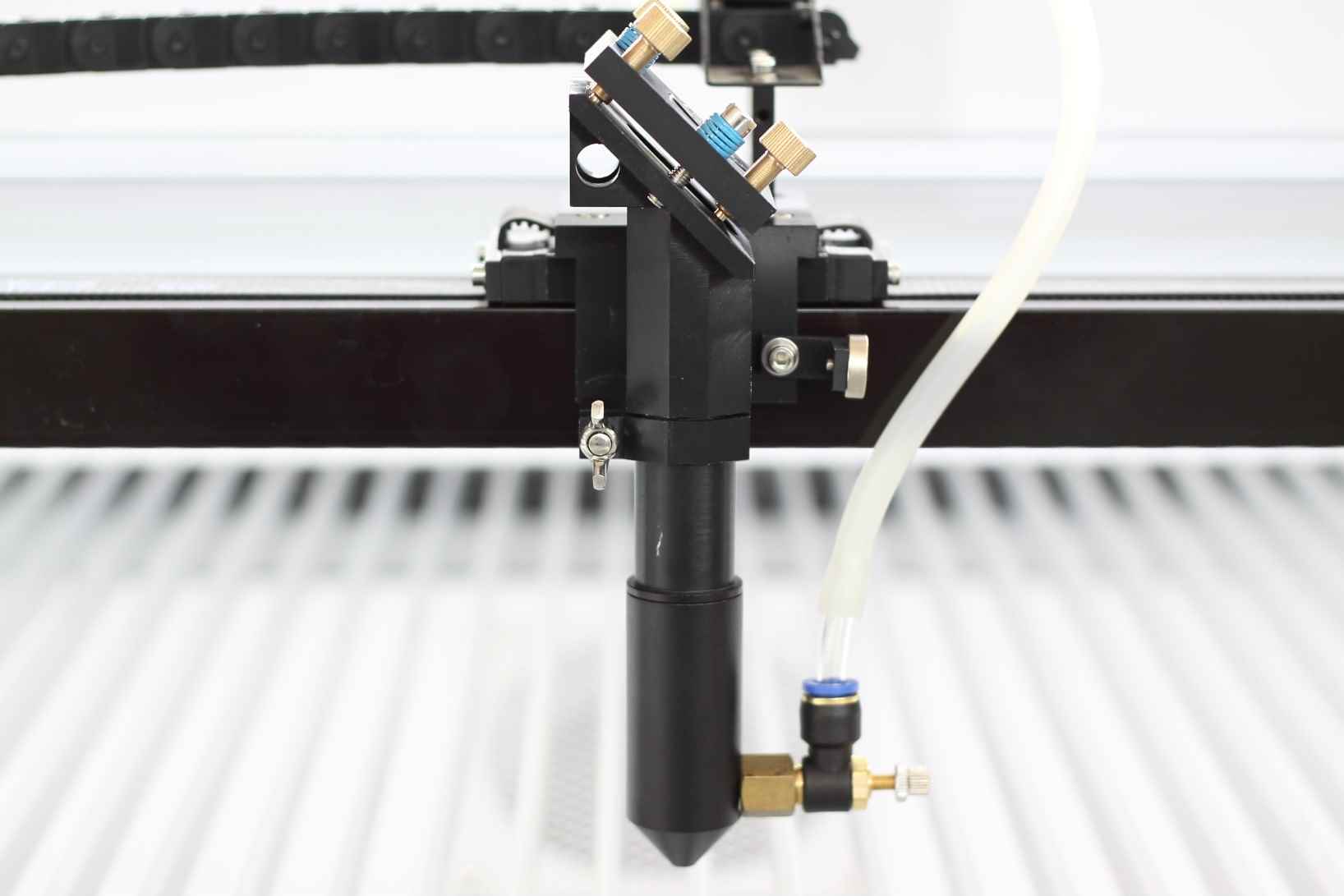

Multiple Laser Cutting/Engraving Heads*

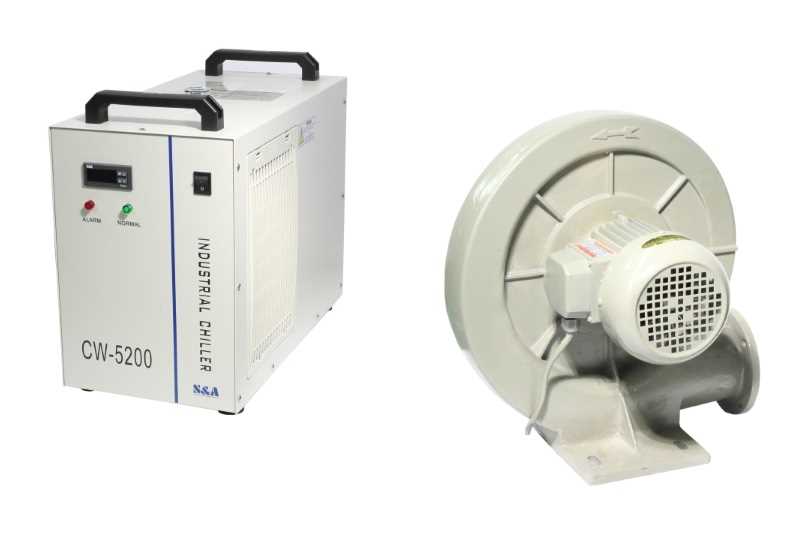

A Complete Set of Accessories

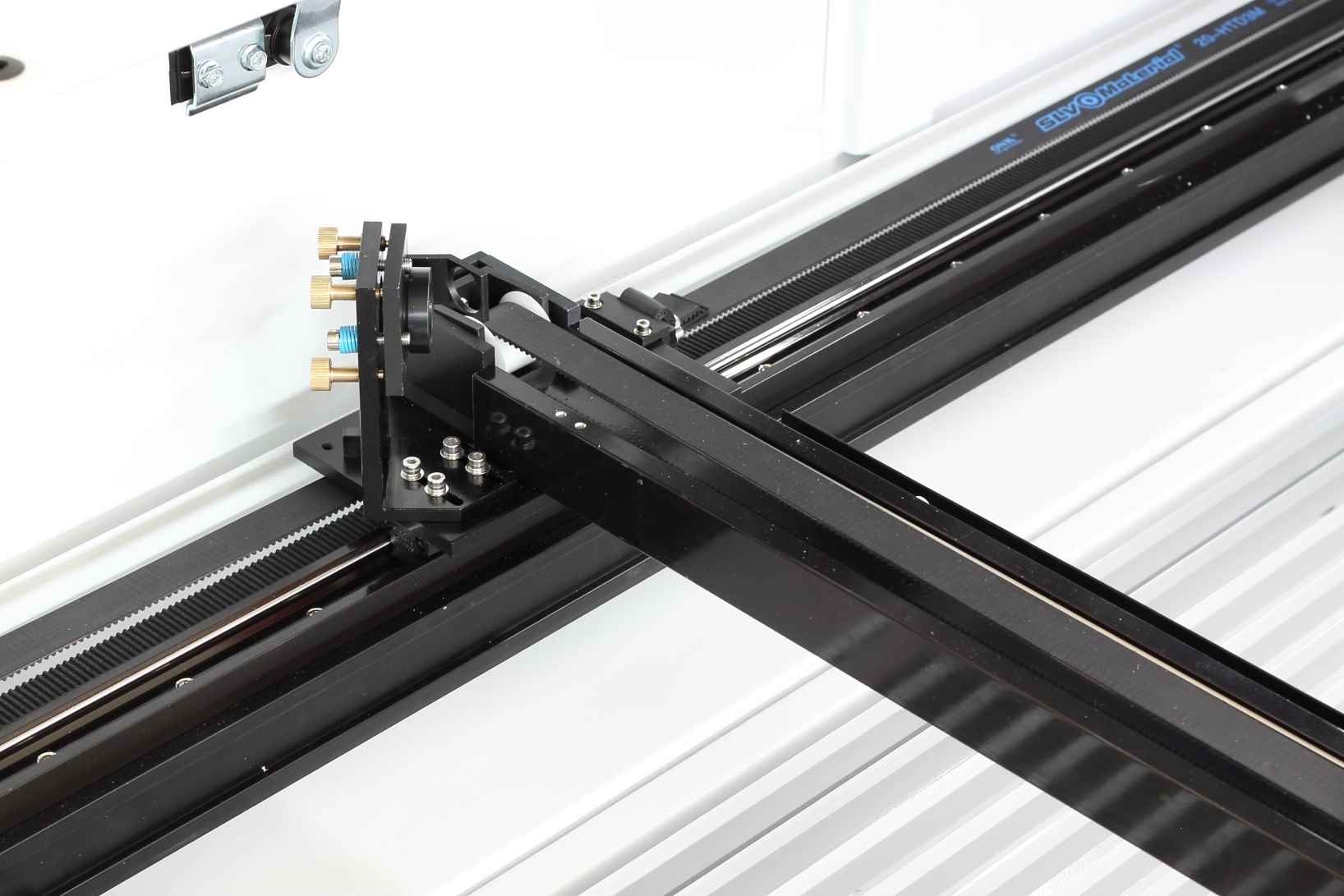

Robust, High-Precision Slides

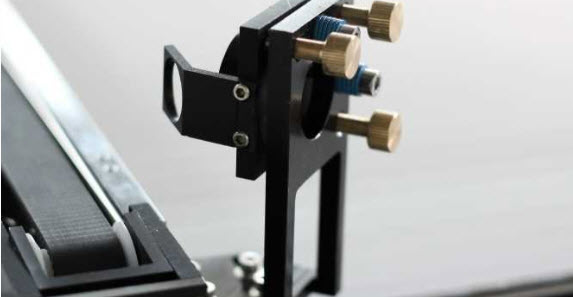

Superior Mirrors and Mirror Mounts

Note: All features marked with * depend on configurations of the laser machine.

Technical Specifications
Working Area
 63″ x 39″ (1600 x 1000mm)
Can fit uncut sheets or long work pieces (along Y direction) with full pass-through capability.
Max. Workpiece Height
 1-1/4″ (30mm)
Working Table*
 An aluminum strip table for hard and flammable materials (acrylic, cardboard, wood, etc.), and a full-support honeycomb table suitable for soft material processing (paper and textiles).
Laser Source
 CO2 Sealed Glass Laser Tube
Laser Power*
 130W / 150W
Laser Configuration*
 Single / Dual laser(s)
Focus Lens*
 Standard 2.5″ (63.5mm), optional 4″ (101.6mm).
Software
 EagleWorks CAD/CAM and EaglePrint print driver, compatible with Windows 7/8/10. 100% support LightBurn software.
Machine/PC Connection
 USB / FLASH / LAN
Operating Mode
 Cutting / Engraving / Combined
Control Interface
 True Color TFT LCD panel with function buttons.
Memory Capacity
 Multiple job storage up to 128M.
Resolution
 Up to 4064 DPI.
Motion System*
 Transmission with belt on advanced balanced bearing rails.
Driven by stepper / servo motors.
Accessories
 Air assist pump, industrial chiller and exhaust blower included.
Electrical Requirement*
 220V/50Hz, single phase, up to 2.5kW~4.5kW depends on configurations.
Size
 88″ x 69″ x 44″ (2235 x 1750 x 1120mm)
Net Weight
 950lb (430Kg)
Note: All specifications marked with * depend on configurations of the laser machine.
Material Compatibility

Engrave
Cut
Acrylic
 ● ●
Paper
 ● ●
Wood
 ● ●
Textiles
 ● ●
Leather
 ● ●
Laminates
 ● ●
Rubber
 ● ●
Stone
 ● –
Glass
 ● –
Coated Metals
 ● –
