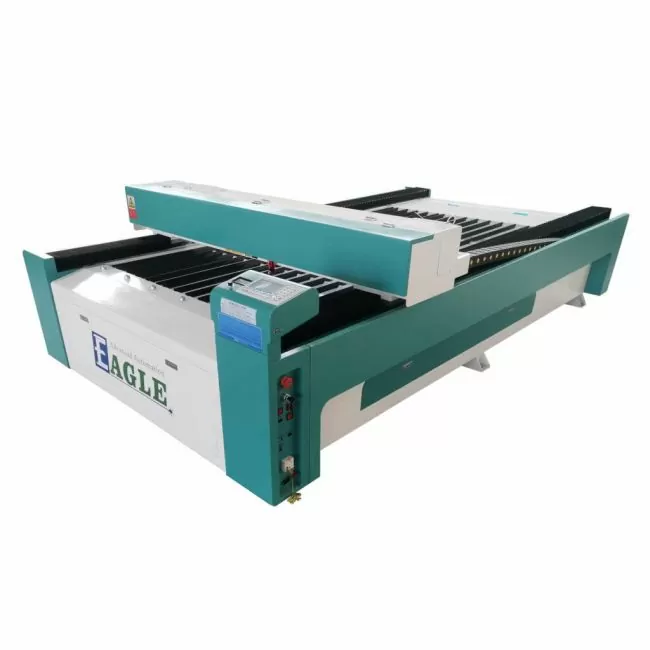

H-1325 LARGE FORMAT LASER CUTTING MACHINE
Item code: H-1325
Weight: 1940 lbs
Description
The H-1325 large format laser cutting machine, with 51″ x 98″ (1250 x 2500mm) working area, X axis transmitted by belt, while Y axis transmitted by rack and pinion, ideal for standard 48″ (1200mm) wide uncut sheet material, offers an economical solution for speedy cutting and engraving of acrylics, cardboard, wood, POM and much more. Our laser machines are the most robust, accurate, and reliable on the market.
Available in: 130W and 150W
130W CO2 laser is the most cost effective choice for cutting (can cut acrylic up to 1" in thickness). 150W CO2 laser is best suitable for cutting ultra-thick materials (can cut acrylic up to 1-1/4" in thickness).
Note: All features marked with * depend on configurations of the laser machine.
Technical Specifications |
|
|---|---|
Working Area |
51″ x 98″ (1300 x 2500mm) |
Max. Workpiece Height |
1-1/4″ (30mm) |
Working Table |
An aluminum strip table for hard and flammable materials (acrylic, cardboard, wood, etc.). |
Laser Source |
CO2 Sealed Glass Laser Tube |
Laser Power* |
130W / 150W |
Laser Configuration |
Single laser |
Focal Lens |
2.5″ (63.5mm) |
Software* |
For the customized EAGLECAM control system, EagleWorks CAD/CAM and EaglePrint print driver, compatible with Windows 7/8/10. And 100% support LightBurn software. |
| For the standard RDC644xG control system, RDWorksV8 CAD/CAM, compatible with Windows 7/8/10. And 100% support LightBurn software. | |
| RDCMarkVision CAM for the camera tracing system. | |
Machine/PC Connection |
USB / FLASH / LAN |
Operating Mode |
Cutting / Engraving / Combined |
Control Interface |
True Color TFT LCD panel with function buttons. |
Memory Capacity |
Multiple jobs storage up to 128M. |
Resolution |
Up to 4064 DPI. |
Motion System |
X axis transmitted with belt on advanced linear rails, driven by stepper motors. Y axis transmitted with rack and pinion on advanced linear rails, driven by servo motors. |
Accessories |
Air assist pump, industrial chiller and exhaust blower included. |
Electrical Requirement |
220V/50Hz, single phase, up to 6.0kW. |
Size |
79″ x 142″ x 39″ (2000 x 3600 x 1000mm) |
Net Weight |
1940lb (880Kg) |
Note: All specifications marked with * depend on configurations of the laser machine.
Material Compatibility |
||
|---|---|---|
Engrave |
Cut |
|
Acrylic |
● | ● |
Cardboard |
● | ● |
Wood |
● | ● |
POM |
● | ● |
Laminates |
● | ● |
Stone |
● | – |
Glass |
● | – |
Coated Metals |
● | – |
