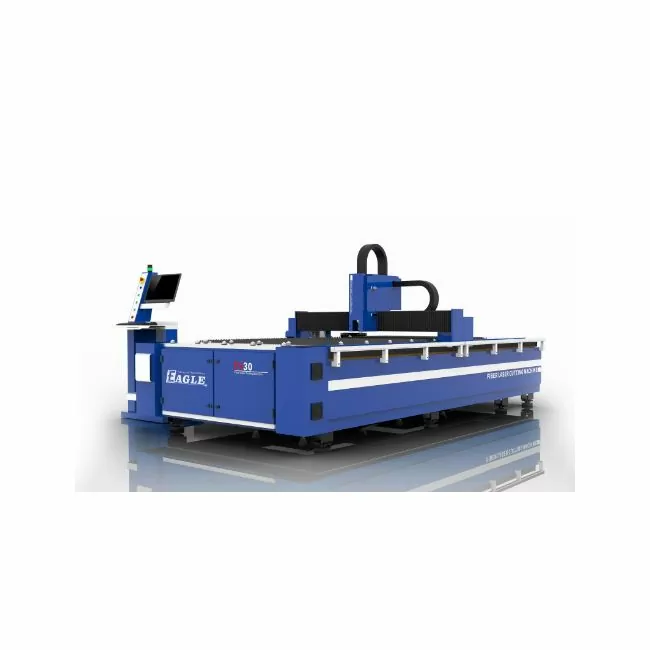

EV-30 FIBER LASER CUTTING MACHINE
Item code: EV-30-IPG-3kW
Weight: 7700 lbs
The EV-30 fiber laser cutting machine, with 5′ x 10′ (1500 x 3000mm) working area, is ideal for standard 4′ (1200mm) or 5′ (1500mm) wide uncut sheet metal cutting, offers first-class quality and expertise with extremely low investment and operation costs for speedy cutting of stainless steel, mild steel, carbon steel and aluminum, etc. Our laser machines are the most robust, accurate, and reliable on the market.
The compact EV-30 is a good choice for your first step into the industrial 2D laser cutting.

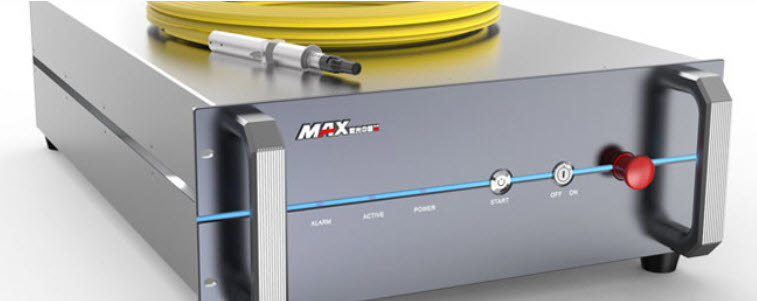

Superior Lase Sources-

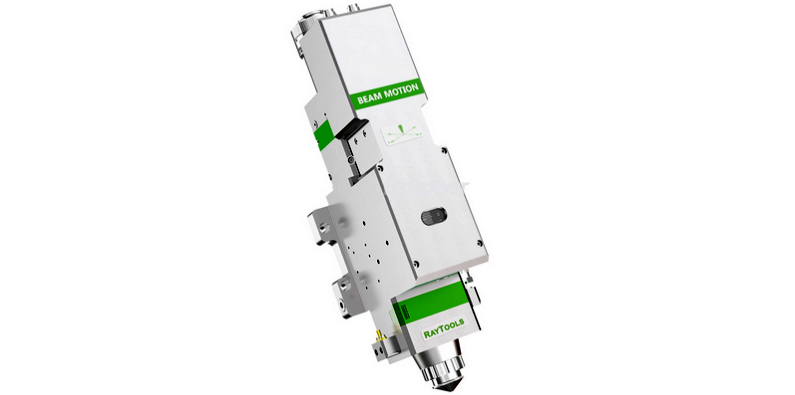

Advanced laser head with automatic focusing functionEasy to use control software-
Easy to use control software-
Technical Specifications |
|
|---|---|
Working Area |
5′ x 10′ (1500 x 3000mm) |
Laser Source |
Fiber Laser |
Laser Power* |
6kW / 4kW / 3kW / 1.5kW |
Max. Speed |
80m/min |
Max. Load |
2600lbs (1200Kg) |
Software |
CypCut CAD/CAM, compatible with Windows 7/8/10. |
Control Interface |
Direct control in software. |
Accessories |
Industrial chiller and exhaust blower included. |
Electrical Requirement* |
380V/50Hz, 3 phases, up to 30kW depends on configurations. |

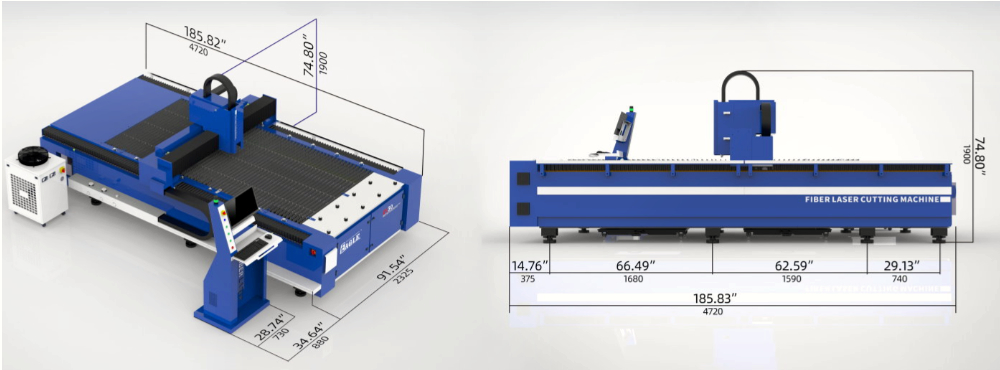

Size |
178″ x 95″ x 67″ (4500 x 2400 x 1700mm) |
Net Weight |
7700lbs (3500Kg) |
