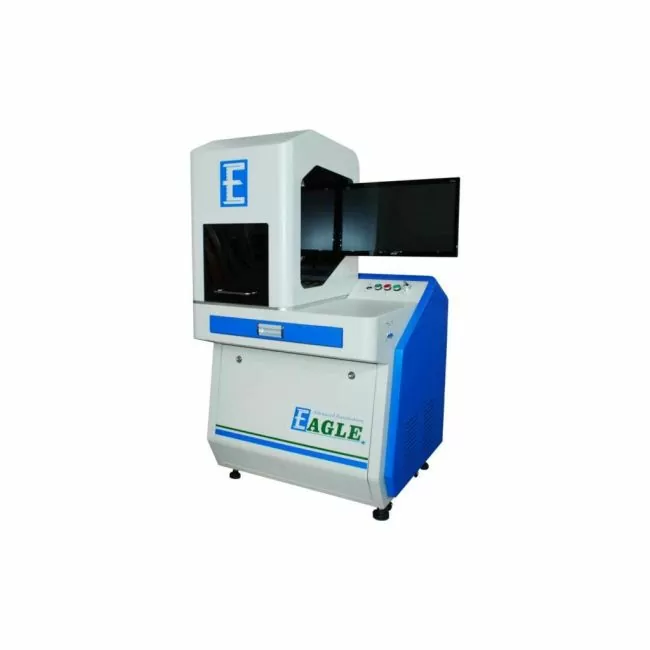

FiberMark F1 Laser Marking Machine
$12,500.00
Item code: MLEF130W
Weight: 350 lbs
Availability:
In stock
SKU
F1
Our FiberMark laser marking machines offer an economical solution for fast and high quality laser marking of metal, plastics and more. Our laser machines are the most robust, accurate, and reliable on the market.
The FiberMark F1 laser marking machine, which is an all-in-one, plug and play, and extremely fast galvo marking system, offers an economical solution for fast and high quality laser marking of metal, plastics and more. Our laser machines are the most robust, accurate, and reliable on the market.
Available in 30W, 50W
Note: All features marked with * depend on configurations of the laser machine.
Technical Specifications |
|
|---|---|
Working Area* |
Standard 4.3″ x 4.3″ (110 x 110mm), optional 3″ x 3″ (75 x 75mm), 7″ x 7″ (175 x 175mm) or 8″ x 8″ (200 x 200mm). Top cover can be removed to fit big or long work pieces. |
Working Table |
Aluminum plate table with an array of threaded holes for aligning or fixing work pieces. |
Laser Source |
Fiber Laser |
Laser Power* |
30W / 50W |
Software |
EzCAD CAD/CAM, compatible with Windows 7/8/10. |
Machine/PC Connection |
Integrated industrial PC. |
Control Interface |
Direct control in software. |
Motion System |
Extremely fast galvo motion system. |
Accessories |
Rotary included. |
Electrical Requirement |
220V/50Hz, single phase, up to 0.6kW. |
Size |
35.4″ x 35.4″ x 59″ (900 x 900 x 1500mm) |
Net Weight |
350lb (160Kg) |
Note: All specifications marked with * depend on configurations of the laser machine.
