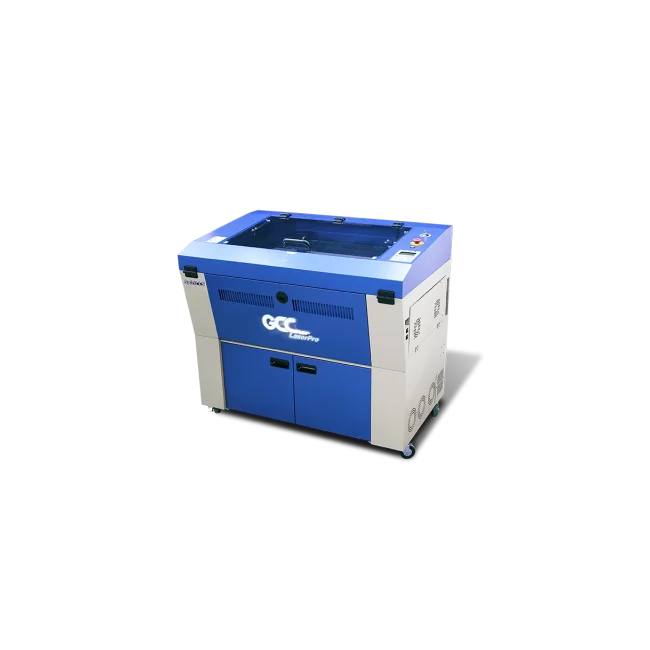

Spirit GLS Hybrid Pro
Item code: MGL-SGLSPRO
Weight: 100 lbs
Item code: MGL-SGLSPRO
Features
z-asis: Automatic
Max. Working Space:960 x 610 mm (38 x 24 in.)
CO2: 30W-60W: 100-240VAC, 50-60Hz Auto Switching, Max. 15A
80W and Above: 200-240VAC, 50-60Hz Auto Switching, Max. 15A
Fiber: 30W or 60W: 100-240VAC, 50-60Hz Auto Switching, Max. 8A
CO₂ & Fiber Hybrid Laser Capability
(Spirit GLS Hybrid PRO Only)
GCC Hybrid technology supports both CO₂ and fiber laser sources within a single system, allowing users to process a wide range of materials—from organic substrates to direct metal marking and engraving.

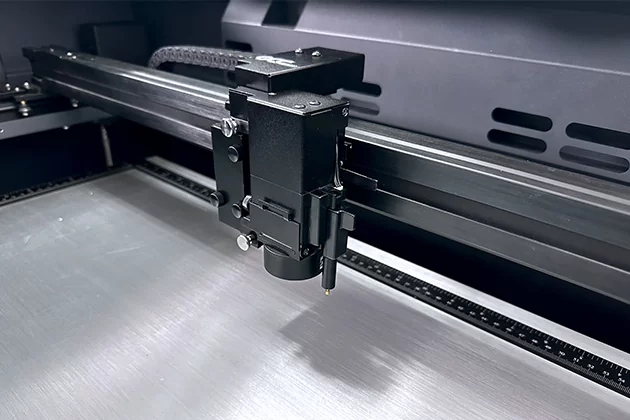

SmartPIN™ AutoFocus (Patented)
The plug-and-play SmartPIN™ AutoFocus system simplifies focusing with one-touch operation while helping maintain the precision needed for consistent engraving and cutting quality.
SmartEYES™ & Live-View Camera
An integrated camera system provides design preview positioning with SmartEYES™ technology and real-time Live-View monitoring to assist with alignment, setup, and observation during operation.

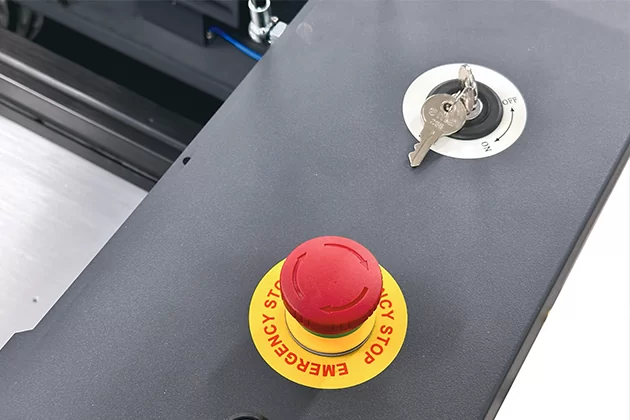

Key Switch & Emergency Stop
A keyed access switch helps prevent unauthorized operation. An easily accessible emergency stop button allows operators to immediately halt laser activity and machine motion when necessary.

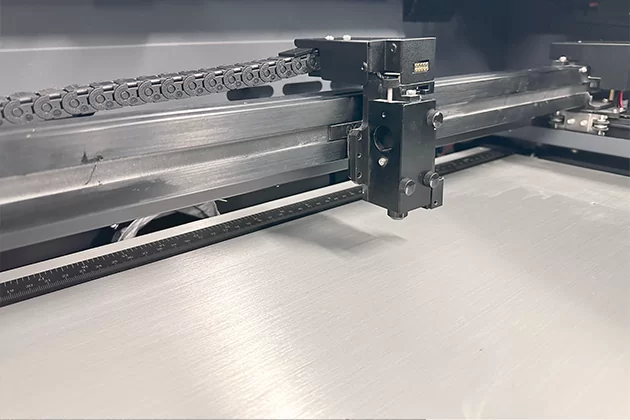

DuraGuide Motion System
The DuraGuide system combines a reinforced mechanical framework, durable Kevlar belts, and precision servo control technology to support smooth motion and high-quality output at elevated operating speeds.

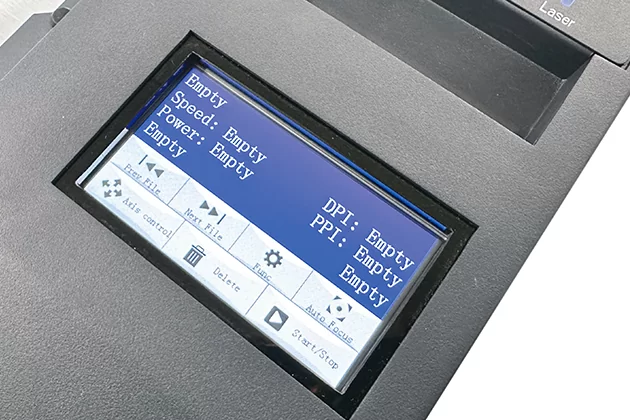

4" Touchscreen Control Panel
An intuitive touchscreen interface with graphic icons and hot-key controls allows users to adjust laser settings, repeat jobs, manage queued tasks, and perform common operations directly from the machine.

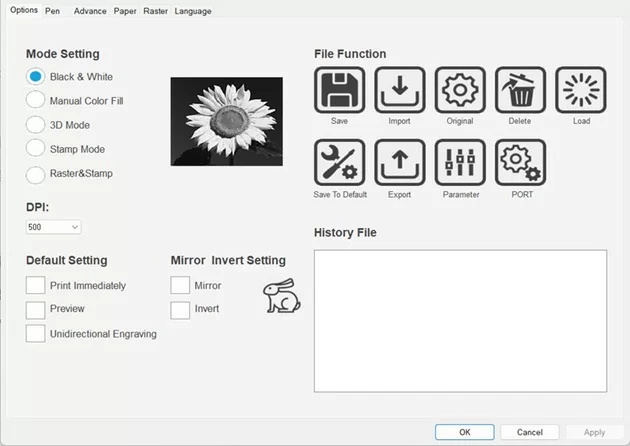

User-Friendly Software Features
Updated software features and interface enhancements help simplify setup and operation. Functions such as SmartCENTER™ and Defocus by Pen are designed to streamline positioning and adjustment processes.

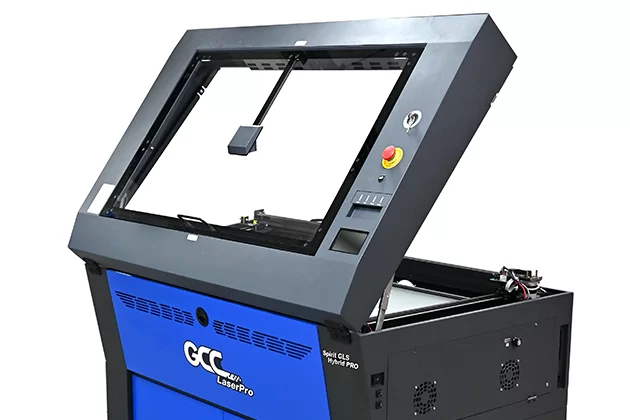

SmartLID™ (Patented)
The SmartLID™ design opens from both the front and rear of the machine to improve accessibility for material handling and routine maintenance.

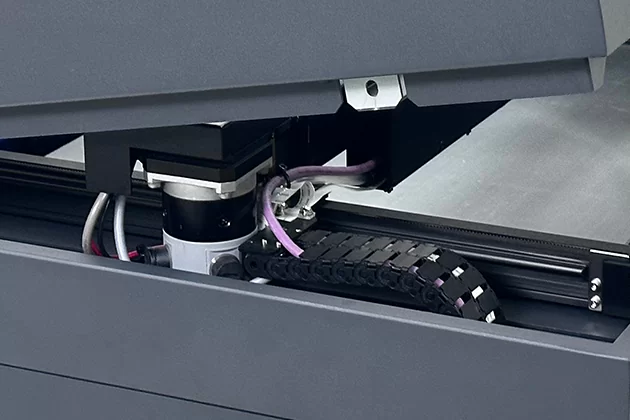

Closed-Loop DC Servo Technology
Closed-loop DC servo motor technology delivers smooth motion control, accurate positioning, and reliable performance during engraving and cutting applications.

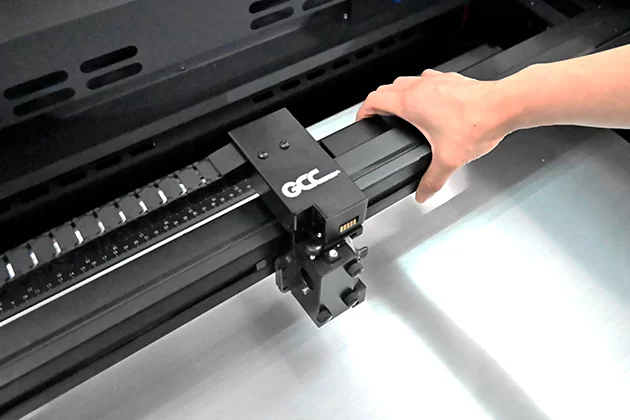

Drag-N-Play Positioning
The Drag-N-Play feature allows users to manually position the lens carriage for rapid setup and simplified job alignment before starting the engraving process.

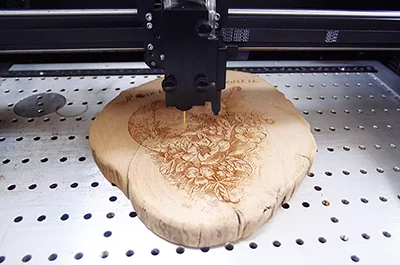

SmartCENTER™ (Patented)
SmartCENTER™ technology assists users in locating the center point of various object shapes automatically, helping reduce setup time and improve positioning accuracy.

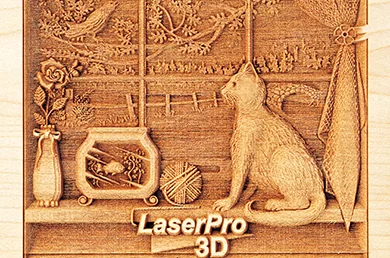

3D Engraving Capability
Integrated image processing and laser control technologies support grayscale-based engraving effects that can produce dimensional and textured engraving results on compatible materials.
TrueImage Engraving Technology (Patented)
TrueImage technology uses an advanced laser firing algorithm designed to enhance image engraving quality and improve detail reproduction.
SmartVISION™ Elite CCD
Please note that the SmartVISION Elite CCD is exclusively compatible with CO2 single models.
Rotary Chuck
Stack Light Set
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)
Purex Fume Extraction System
SmartGUARD™ Fire Alarm (Patented)
Flame Sprinkler System
Entry-Level Fume Extraction System
* For seamless fume extractor control via laser machines, we recommend considering the purchase of an external I/O board.

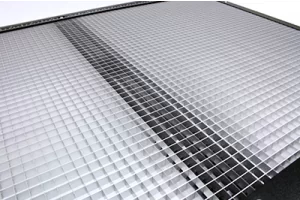

Grid Cutting Table
External Interface Control Board
SmartBOX™
SmartAIR™ Fine Nozzle
Dust Prevention Window
Air Compressor
SmartTOOL™
GCC offers a 10-day trial for users. You can download it and visit the following link to obtain the trial code.
License Registration
Spirit GLS Hybrid PRO Laser Engraver Spec
| Spirit GLS Hybrid PRO | |||
|---|---|---|---|
| Work Area | 860 x 610 mm (34 x 24 in.) Extendable to 960 x 610 mm (38 x 24 in.) | ||
| Max. Part Size (L x W x H) | All doors closed | 990 x 635 x 177 mm (39 x 25 x 7 in.) | |
| All doors open | 990 x ∞ x 177 mm (39 x ∞ x 7 in.) | ||
| Dimensions (W x D x H) | 1,373 x 934 x 1,010mm (54.1 x 36.8 x 39.8 in.) | ||
| Laser Source | CO2 | 30W to 100W 10.6-μm sealed CO2 Laser | |
| Fiber | 30W or 60W Fiber laser | ||
| Dual | Available | ||
| Cooling | Air-cooled, Operating environment temperature 15°- 30°C (59°- 86°F) | ||
| Drive | Closed-loop DC servo control | ||
| Maximum Engraving Speed* | CO2 | 30W - 40W: 2.54 m/s (100 in/s) / 60W - 100W: 3.04 m/s (120 in/s) | |
| Fiber | 30W or 60W: 3.04 m/s (120 in/s) | ||
| Dual | CO2 30W -40W & Fiber 30W or 60W : 2.54 m/s (100 in/s) | ||
| CO2 60W -100W & Fiber 30W or 60W : 3.04 m/s (120 in/s) | |||
| Speed Control | Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job) | ||
| Power Control | Adjustable from 0~100% (Up to 16 color-linked power settings per job) | ||
| Engraving Capability | 256-level gray scale image processing capability | ||
| Z-Axis Movement | Automatic | ||
| Camera | SmartEYES | Standard | |
| SmartVISION Elite | Optional | ||
| Focus Lens | CO2 | Standard 2.0”, optional 1.5”, 2.5”, & 4.0” available | |
| Fiber | Standard 4.0”, optional 2.0” available | ||
| Dual | Standard 2.0", optional 3.0" & 4.0" available | ||
| Resolution (DPI) | Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500 | ||
| Interface | 10 Base-T Ethernet USB Type-A 2.0  – For USB storage (Max. 32GB capacity, FAT file system)USB Type-B 2.0  – For connecting with the computer | ||
| Compatible Operating Systems | MS Windows | ||
| Control Panel | 4” Touch panel | ||
| Safety | Class 1 Laser Product Compliant with EN60825, Class 2 Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module | ||
| Facility Requirements | |||
| Operation Voltage | CO2 | 30W - 60W: 100-240VAC, 50-60Hz Auto Switching, Max. 15A 80W and Above : 200-240VAC, 50-60Hz Auto Switching, Max. 15A | |
| Fiber | 30W or 60W: 100-240VAC, 50-60Hz Auto Switching, Max. 8A | ||
| Fume Extraction System | External exhaust system with minimum flow rate 800m3/h (CFM 471 ft3/min) is required,2.3kPA negative pressure (Pure-Air PA-1500FS @ 4" exhaust port) | ||
| * Speed is not equal throughput. See dealer or visit http://www.GCCworld.com for more details. | |||
