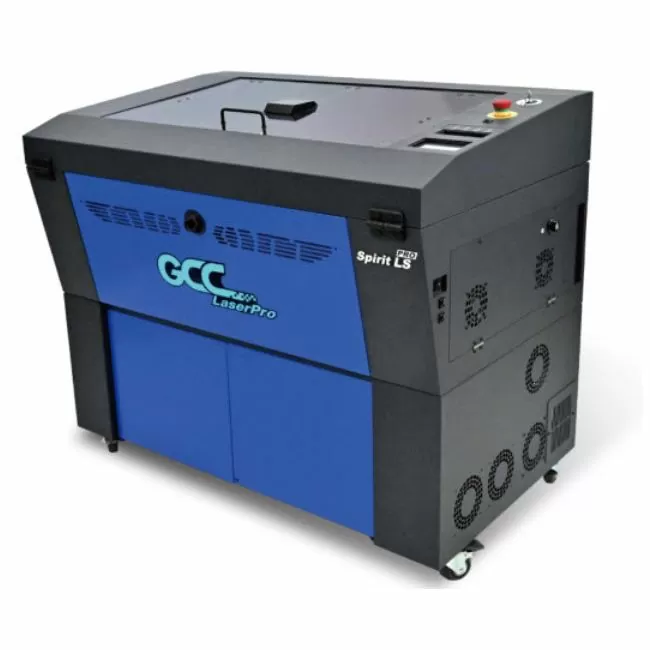

Spirit LS Laser

Features

	DFARS “Made in America”
	Reliable and Made in USA CO2 Lasers The CO2 laser tube is the most critical component of a laser engraver. GCC LaserPro offers the best and most reliable CO2 laser available in the industry. Synrad CO2 lasers are built in the United States with the most advanced laser technology. The laser product is proven to be the most reliable brand with tens of thousands of installations all over the world.. read more...
	RoHS Compliance All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.
	Drag-N-Play An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage to the desired position to be engraved and press the start button to commence job.
	Closed-loop DC Servo Technology A Closed-loop DC servo motor can deliver greater continuous shaft power at higher speeds than a stepper of the same frame size. In addition, It can also give far greater accuracy due to the continuous movement, instead of constant stopping and starting. GCC LaserPro high speed closed-loop DC servo motor technology guarantees precise and fast carriage movement with exceptionally accurate outputs.
	SmartCENTER™ (Patented) The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.
	Astonish 3D Engraving GCC LaserPro integrates laser firing control and image processing technology to create a 3D engraving function, the laser system assigns up to different laser powers to 200 levels of grayscale in the image to make the spectular 3D effects with different slopes.
	TrueImage™ Engraving Technology (Patented) Patented TrueImage feature smoothes the image engraving edge automatically by employing a unique laser firing algorithm to present image engraving in its most vivid form.
	SmartACT™ (Patented) Ground-breaking technology that reduces the ramping process, the job running time, which translates into higher productivity.
	Innovative Windows Driver Directly output from familiar designing software like Illustrator, CorelDraw, AutoCad through GCC LaserPro Windows driver. The innovative driver featuring powerful functions, such as SmartCENTER, Air Assit by Pen, Defous by Pen, Bridge Cutting, Drill, Dithering Patterns and more to reduce set up time and make easy adjustments to achieve marvelous output quality.
	SmartLIGHT Built-in LED light module illuminates the working space and makes every engraving detail easy to see.
	Pass-through Front & Rear Doors Convenient front and rear door open design enables loading of extremely long working pieces with ease and extends business flexibility.
	DuraGuide Motion Design Systematic and reliable motion system embedded with strong mechanical framework and accurate servomotor control technology to deliver superb output quality under rapid movement.
	Key Switch & Emergency Stop Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment.
	Intuitive Control Panel Interface A user-friendly menu-driven interface system simplifies complex tasks. Hot keys design and job status display facilitate your work and make it clear and easy to carry out.
	Rigid and Reliable Construction Rigid and stable chassis construction ensures consistent output quality under high speed movement.
	Programmable Origin Modes Easy-to-use multiple position modes allow the operators an effortless way to setup a job with Drag-N- Play. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.
	SmartPIN™ AutoFocus (Patented) The plug and play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality in the lasering process.
	Built-In Networking Connection Network connection enables multiple laser engravers to be operated by one PC and multiple PCs to share a single unit of laser engraver. The Ethernet port has made data transmission easier and faster for GCC LaserPro users using network connection. Free your designers with great flexibility and maximum machine versatility...MORE
	Job Preview Function The GCC LaserPro laser engraver all series printer driver features a job preview function that previews graphics before the official laser printing process. One of the highlights of this feature is that it provides an estimated working time*. The estimated working time is an easy tool for operators to know in advance as how much time will be needed to finish the job for better job management; it is also convenient for a shop to provide a quotation for its laser services.
	SmartPRINT™ (Optional) The GCC LaserPro SmartPRINT™ software features powerful functions, an intuitive interface and embedded GCC LaserPro laser parameter setting for both MAC and Windows users....MORE SmartPRINT™ Flyer Download
	Bridge Cutting Bridge Cutting function diversifies the laser cutting into packaging prototyping and fulfill versatile requirements. Define the cutting gap to create the dashed line effect from user friendly print driver interface. Bridge Cutting online Video
	SmartLID™ (Patented) An innovative lid that opens from both ends allowing easy access for daily maintenance
	Full size video

Optional Items

Big Laser Time Savings with Roll to Roll Accessory

GCC, a global forefront equipment-manufacturing provider in the visual-tech industry, is pleased to announce the new optional Roll to Roll Autofeeder device, available for GCC LaserPro Spirit & Spirit LS.

The Roll to Roll Autofeeder unit is a superior user-friendly optional item that can be used in tandem with GCC LaserPro Spirit or Spirit LS models to form an automated engraving system when working with rolled material. For instance, if used with Heat transferable material such as PureFlex or SEF heat transfer papers, the laser can produce very exquisite and delicate patterns which can be heat pressed directly without the need for weeding. The Roll to Roll Autofeeder is the essential solution to mass production requirements.

Purex Fume Extraction System

GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum capacity, compact design and long life expectancy are just a few of its outstanding features. Powered by a maintenance-free, continuous-running turbine, the Fume Extraction System, which is CE-compliant, ensures personnel safety and legal compliance.

Flame Sprinkler System

Laser cutting and engraving operations using the flame sprinkler system protects the operator, machine, and the work products from potential fire hazards. During the engraving process, flaming may occur when working with combustible or easily-flammable materials, such as paper or wood. The flame sprinkler system is an optional item that automatically ejects gas to extinguish flames when they reach 68°C/155°F moments after the onset of the fire.

Wi-Fi Router

Wi-Fi router allows you to transmit data through a wireless network. It can work with GCC laser engravers and RX II/ Jaguar V cutting plotters through the Ethernet port (not applicable for Japanese users.) Whether you are sending files to multiple GCC machines using one PC or sharing one unit of GCC machines with multiple PCs, this wireless technology can be an excellent helper.

Rotary Chuck

The rotary chuck is a handy …..for engraving on cups, wine glasses, and even spherical objects with tilt angle. In addition to the standard X, Y, Z axis, the rotary Chuck allows for a fourth axis which rotates the object 360° to allow for engraving on cups, wine glasses, and even spherical objects. The diameter range of the to-be-engraved object is 0.5mm to 120mm and the max. length of the object is 410mm. Its maximum weight should not exceed 4kgs.
*Please note that the Rotary Attachment is not able to work with AAS module at the same time.

Aluminum Grid Cutting Table

The aluminum grid cutting table is an ideal pal for laser cutting. It lifts the work piece off the work table from hitting by laser reflection while supports it with reinforced aluminum grid design. The dust and vapor created during laser cutting are then taken away effectively through the grid by down vacuum exhaust (suggested using SmartBOX™ together). Rather than handling rigid materials, aluminum grid cutting table also helps to fix flexible materials with the aid of down vacuum SmartBOX™ to keep constant focus distance and consistent cutting result. A clean and better cutting quality is achieved from this technique.

External Interface Control Board

The External Control Interface Board is an optional item that allows users to set up GCC laser machines for communication with external devices such as odor reduction units, robot arms and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.

AAS Contour Cutting Device (Patented)

Developed by GCC LaserPro, AAS is an exceptionally user-friendly operation which offers accurate and faultless contour cutting by automatically tracking the position of graphics.
Note: Working area and engraving speed will be reduced when AAS module is installed.

External Signal Indicator

The indicator will flash to signal the end of job process and is ideal for working environment where audibility is weak.

SmartBOX™

An innovative technology that integrates the ventilation box with a honeycomb table or Aluminum grid cutting table. The result is not only a precise cut with sharp edges, but also a clean laser table to work on.

Roll to Roll Autofeeder

The Roll to Roll Autofeeder unit is a great optional item that can be used in tandem with Spirit or Spirit LS, or Spirit GLS model to form an automated engraving system when working with rolled material. For instance, if used with Heat transferable materials, the laser can produce very fine and delicate patterns which can be heat pressed directly without the need for weeding. The Roll to Roll Autofeeder is the essential solution to mass production requirements.
* The width of material loading is limited to 600mm (23.6”).

Rotary Attachment

Allows the laser system to perform at another level! By using the rotary attachment, engraving on cylindrical or round objects is now possible. This option uses a fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixture available. The minimum/maximum diameter and length of the working object is 90/180mm and 450mm respectively. Its maximum weight should not exceed 4kgs.
*Please note that the Rotary Attachment is not able to work with AAS module at the same time.

SmartAIR™ Fine Nozzle

The optional SmartAIR Fine Nozzle is recommended for engraving or cutting thin materials such as textile. The smaller caliber nozzle is positioned closer to the object for a concentrated blast directed over a small area to eliminate burning on the cutting edge. The perfectly-vertical design of the SmartAIR Fine Nozzle produces a concentrated airflow to blow away dust and unwanted residue, leaving a clean product surface.

Dust Prevention Window

When the laser system is on duty, it will bring a lot of dust result from the material and it will contaminate the lenses and mirrors. Dust Prevention Window can keep lenses and mirrors clean to promote longer laser life and increase the effect of air induction.

Purex Fume Extraction System

GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum capacity, compact design and long life expectancy are just a few of its outstanding features. Powered by a maintenance-free, continuous-running turbine, the Fume Extraction System, which is CE-compliant, ensures personnel safety and legal compliance.

Air Compressor

A specially designed Air Compressor for laser engravers, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.

SmartGUARD™ Fire Alarm (Patented)

Laser cutting and engraving operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.

Honeycomb Table

The honeycomb table is an ideal tool for laser cutting, especially when cutting materials into small pieces. It lifts the work piece off the work table from hitting by laser reflection while supports it with honeycomb cell design. The dust and vapor created during laser cutting are then taken away effectively through the honeycomb cell by down vacuum funnel exhaust. Rather than handling rigid materials, honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting result. A clean and better cutting quality is achieved from this technique.

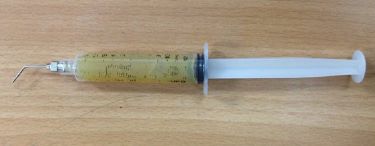

MAlubeGCC10ML Special lubricating greases

Recommended Lubricant for X-axis Rails
on GCC Laser Machine Models: Spirit
SLS, GLS, SGLS-Hyb,S290LS, FMC 270

Specs


Work Area		25 x 18 in. (640 x 460 mm) Extendable to 29 x 18 in. (740 x 460 mm)
Max. Part Size (W x L x H)	All doors closed	762 x 482.6 x 165 mm (30 x 19 x 6.5 in.)
	All doors open	762 x ∞ x 165 mm (30 x ∞ x 6.5 in.)
Table Specs
Dimensions (W x L x H)		1,125 x 720 x 1,005 mm (44.3 x 28.3 x 39.6 in.)
Laser Source		30 to 100W 10.6-μm sealed CO₂ Laser
Cooling		Air-cooled, Operating environment temperature 15°- 30°C (59°- 86°F)
Drive		Closed-loop DC servo control
Maximum Engraving Speed*		30W - 40W: 2.54 m/s (100 in/s) 60W - 100W: 3.04 m/s (120 in/s)
Speed Control		Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job)
Power Control		Adjustable from 0-100% (Up to 16 color-linked power settings per job)
*Throughput with SmartACTTM Enabled**		322.1 in2 / hr (2078 cm2 / hr)
Speed Control		Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job)
Power Control		Adjustable from 0-100% (Up to 16 color-linked power settings per job)
Engraving Capability		256-level gray scale image processing capability
Distance Accuracy		0.254 mm or 0.1% of move, whichever is greater
Z-Axis Movement		Automatic
SmartEyes		Standard
SmartVISiON Elite		Optional
Focus Lens		Standard 2.0", optional 1.5" available
Resolution (DPI)		Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500
Computer Interface		10 Base-T Ethernet, USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0 – For connecting with the computer
Compatible Operating Systems		MS Windows
MCB Controller Memory		32-MB RAM, Expandable from 64-MB to 32-GB External
Display Panel		4-line LCD : panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus
Safety		Class 1 Laser Product Compliant with EN60825, Class 2 Laser Product Compliant with CDRH, 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Facility Requirements
Operation Voltage		30W - 60W - 100-240VAC, 50-60Hz Auto Switching, Max. 15A 80W/100W - 200-240VAC, 50-60Hz, Max. 15A
Fume Extraction System		External exhaust system with minimum flow rate 640m³/h (CFM 377 ft³/min) is required,2.3kPA negative pressure (Pure-Air PA-1000FS @ 4" exhaust port)

** Speed is not equal throughput. See dealer or visit http://www.GCCworld.com for more details.
** The flow rate is determined by a default fume extraction system; the flow rate may vary due to a different fume extraction system.
∆ Specifications are subject to change without prior notice
