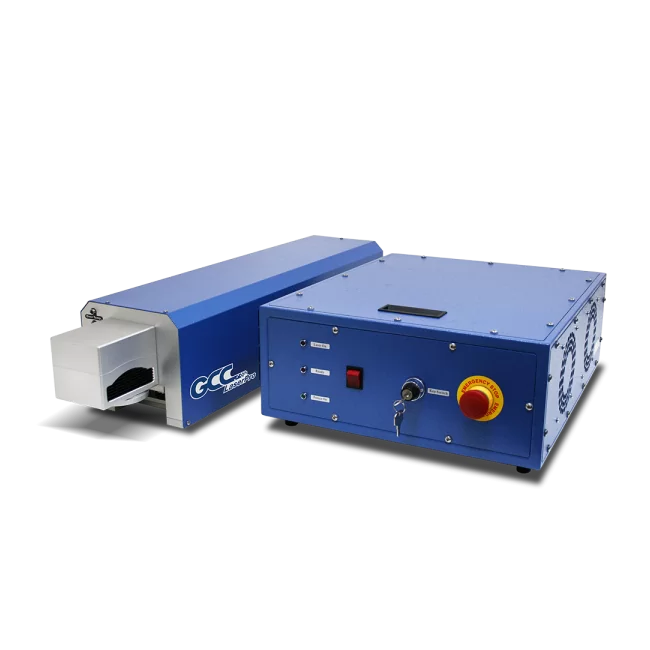

StellarMark C-series
Item code: MGL-SCMARK
 |
RoHS ComplianceAll GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.
|
|
|
CE CertificationStellarMark complies with the essential safety requirement which set out in the European Directives. |
|
|
|
G-Mark Library (Optional)This programmable software can be used to customize functions by using VB scripts. All the commands are received in real time from a master PC and position to offsets, rotating angles and sequential marking can be easily set up. |
|
|
MARK on the fly (Optional)Non-stop, "on-the-fly" marking of parts maximizes productivity. Precise laser can mark fast-moving parts while the conveyor is at constant or varying speed. |
|
|
Jump CrossThis feature can effectively avoid over-burning problems caused by two overlaping lines in the same character. |
|
|
Wobble MarkingThis function allows the true type text to be marked with thicker line. |
|
|
Array copyUsers can create multiple copies of a text or graphic by specify the number of copies to be replicated and the graphic will be rendered in a matrix format. |
|
|
Error IndicationsError messages appear when the laser marker works incorrectly. Operators can be informed by the message and solve the problem immediately. |
|
|
Secure Password SystemThree-tier password security system (Operator, Programmer, Administrator levels) restricts unauthorized access to the production line. |
|
|
Preview ModelVariable-speed, red dot pointer "preview" mode performs accurate and easy marking positioning on the marked part. |
|
|
Automatic Serial MarkingWith this feature, users can increase or decrease the serial part number automatically. |
|
|
Font Marking VariationsThis feature enables marking of a variety of character expressions via Arc Alignment, Angle Alignment, and Marking Direction. |
|
|
Barcode Marking14 types of 1D and 5 types of 2D barcodes (Data Matrix, PDF417, QR Code and Maxi Code) are available. |
|
|
Logo and Image MarkingThis function provides imported vector files and raster images up to 1000 dpi utilizing beam expander and performing exceptional image processing capabilities. |
Purex Fume Extraction System
GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum capacity, compact design and long life expectancy are just a few of its outstanding features. Powered by a maintenance-free, continuous-running turbine, the Fume Extraction System, which is CE-compliant, ensures personnel safety and legal compliance.
EZ Stand ( c-series)
EZ Stand is a simple laser marker holder that allows users to quickly set up a marking environment suitable for use with StellarMark C & I series. An adjustment dial on the EZ Stand allows users to quickly and easily adjust the position of the laser marker to maintain the most suitable focal distance for the varying focal distance requirements when marking objects of different sizes.
Fire-retardant safety door
UL No. E919153 Fire retardant class: Class 94HB
Slow horizontal burning on a 3mm thick specimen with a burning rate is less than 3"/min or stops burning before the 5" mark. H-B rated materials are considered "self-extinguishing"
．Fire retardant PC (Polycarbonate) material is adopted by Stellar Mark C-Series's safety shield to ensure user's safety.
．Safety interlock is designed to ensure that laser is working only when the safety door is closed.
Mounting platform
Stellar Mark C-12II / 30II can be fastened to a rigid mounting structure and to ensure the marking system and adjustable Z-axis table are parallel to each other for quality jobs.
Adjustable z-axis table
Adjust the marking surface as required to ensure that it is parallel to the Stellar Mark focusing lens mount.
Rotary Attachment - Marker
The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.
Workstation
*Not available on StellarMark C-100 model
|
||||||||||||||||||||||||||||
|
C-100
|
||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||
|
** According to theoretical calculation.
|
|
Stellar Mark Model No.
|
C-12IIA 010
|
C-12IIA 050
|
C-12IIA 070
|
C-12IIA 140
|
|
|
C-12IIA-L 010
|
C-12IIA-L 050
|
C-12IIA-L 070
|
C-12IIA-L 140
|
|
Working Area
|
10x10 mm
|
50x50 mm
|
70x70 mm
|
140x140 mm
|
|
Spot Size**
|
0.09 mm
|
0.12 mm
|
0.21 mm
|
0.41 mm
|
|
Repeatability**
|
0.001 mm
|
0.003 mm
|
0.004 mm
|
0.008 mm
|
|
Stellar Mark Model No. |
C-100 070 |
C-100 140 |
C-100 200 |
C-100 300 |
C-100 400 |
C-100 500 |
|
Working Area |
70 X 70 mm |
140x140 mm |
200x200 mm |
300x300 mm |
400x400 mm |
500x500 mm |
|
Spot Size** |
0.21 mm |
0.41 mm |
0.58 mm |
0.69 mm |
1.06 mm |
1.25 mm |
|
Repeatability** |
0.004 mm |
0.008 mm |
0.012 mm |
0.017 mm |
0.023 mm |
0.029mm |
|
Stellar Mark Model No. |
C-12IIA-HSII 140 |
|
Working Area |
140 X 140 mm |
|
Spot Size** |
0.19 mm |
|
Repeatability** |
0.008 mm |
|
Stellar Mark Model No. |
C-12IIA |
C-12IIA-L |
C-30IIA |
C-100 |
|
|
Laser Source |
Type |
CO2, sealed-off |
|||
|
Output Power |
12W |
30W |
100W |
||
|
Wavelength |
10.6 μm |
||||
|
Cooling |
Air-cooled, no water chiller required |
Water-cooled |
|||
|
Operation Voltage |
AC Auto Switching 115 V/230 V, 50-60 Hz/ single phase |
||||
|
Power Consumption |
740W |
1240 W |
4600 W |
||
|
Laser Marker Dimensions |
620 mm x 200 mm x 150 mm |
285 x 184 x 560 mm |
620 x 200 x 150 mm |
1410 x 260 x 210 mm |
|
|
Control Unit Dimensions |
500 mm x 420 mm x 192.4 mm |
485 x 650 x 180 mm |
|||
|
Laser Marker Weight |
15 kg |
17 kg |
42 kg |
||
|
Control Unit Weight |
17 kg |
19 kg |
22 kg |
||
|
Max Linear Marking Speed |
3000 mm/s |
3000 mm/s |
|||
|
Maximum Marking Speed |
10000 mm/s |
10000 mm/s |
|||
|
Operating system |
Microsoft Windows 2000/XP/Vista (32 Bit) / Win 7(32 Bit) ( Desktop or Laptop PC ) |
||||
|
Safety |
Class 4 ( Class 3R available with safety door ) |
||||
