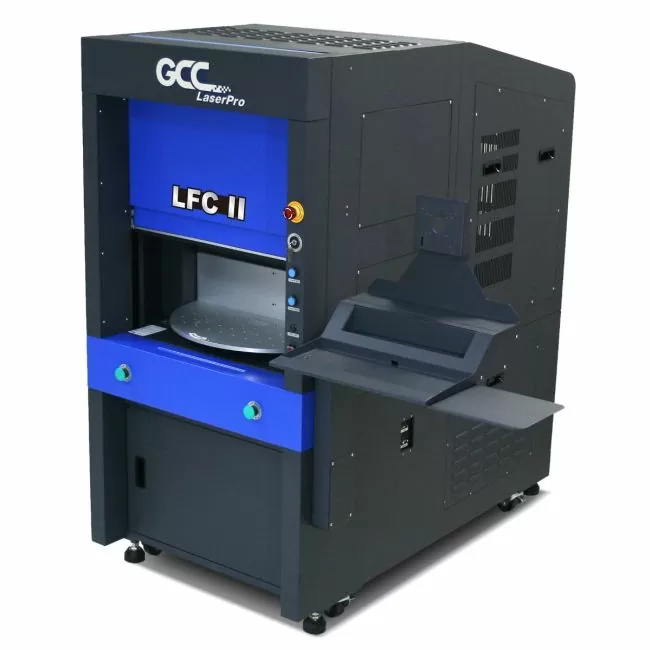

Workstation LFC II

LFC II Workstation integrates various processing modes and exclusive accessories to meet customers’ need. 700 x 400 mm working table is able to place large objects and setup fixtures effortlessly.
LFC II Workstation is considered a class 1 (EN60825-1) device to ensure user safe and sound is the best industrial solution.

	Standard Table Standard table with matrix M6 circular slots for fixture mounting, setup is very easy.
	Dual Start Button  Advanced secure protection by simultaneously pushing the Dual Start buttons to fire laser.
	Emergency Stop  Big red button located on the right of machine allows operators to stop the laser and AC power immediately to provide highly safety operation.
	Automatic Safety Door  Automatically controlled front door with the anti-pinch to secure safety operation.
	Pass-Through Door  Removeable side doors allow integrating with conveyor and Mark On Fly (optional) for continuous production with 420 x 290 x 420 x 290 x ∞ mm (WxDxL) * When the right door and left door are open, machine becomes a Class 4 equipment and users must wear goggles to operate the machine.
	Key Switch  Key Switch manages different authority levels between Service Mode and Operator Mode to restrict unauthorized access to the production setups. *Service Mode will allow laser firing when door is open to allow parameter test and setup.
	External Signal Indicators  The three-color indicator shows the current status of the machine, easily visibility and ideal for the factory working environment.

Screen Frame Module

Screen Frame Module can place laptop, monitor, keyboard and mouse conveniently.

MultiFOCUS

MultiFOCUS function allows to define multiple focus distances according to different height of working objects at once, the Z axis will automatically move to correct position to deliver precise laser marking jobs. Laser marking on different height working surface in one shot now is possible.

Rotary Table

Rotary table can maximum production throughput by loading and unloading working materials while laser firing at the same time.

Rotary Attachment - Marker

The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick.

Purex Fume Extraction System

GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum capacity, compact design and long life expectancy are just a few of its outstanding features. Powered by a maintenance-free, continuous-running turbine, the Fume Extraction System, which is CE-compliant, ensures personnel safety and legal compliance.

Warranty Policy is Effective from 01/01/2019

GCC, a global forefront equipment-manufacturing provider in the visual communication industry, is pleased to announce New Product Warranty Policy. The warranty period for new qualifying machine purchases will be counted from Installation Date provided the following conditions are met.

The condition and workflow have been displayed below :

1. New Product Warranty Policy is applied to machine shipped from GCC in 2019.
2. When the machine sold to end user, it is important to advise end user immediately to link to the GCC’s club http://gccf.gcc.com.tw/gccclub/login.aspx  to sign up and input the machine Serial number and their basic data to activate the machine warranty. Then the warranty of this specific serial number of machine will be changed from the invoice date to data input date (i.e., Purchasing Date that end-user purchases machine)
3. However, the max. Periods for end user to activate the machine warranty is 180 calendar days from invoice date.  If machine fails to be registered within this 180 days period, there will be no any extended warranty and the machine warranty period will be by default still from the invoice date.
4. Warranty for Consumable item, Optional item and Spare parts are counted from GCC Invoice Date without change.
