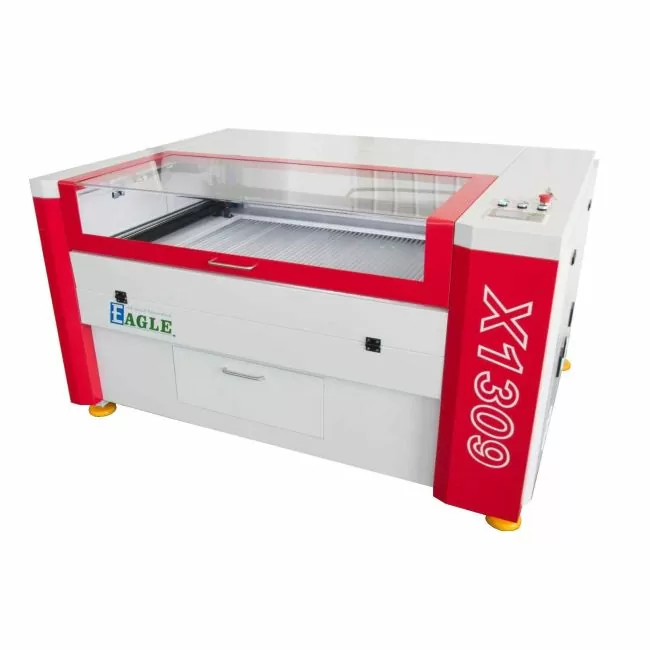

X-1309 Glass Tube CO2 General Purpose Cutting Laser

One of our most popular machines, the X-1309 is our largest general purpose CO2 laser machine with a variable-height working area. Fitted standard with a 150-watt laser tube (available in up to 300-watts), this machine has proven to be a vital tool for businesses in a wide variety of industries ranging from textile and garment manufacturing, to sign making and prototyping. With a metal blade or honeycomb bed (51″ x 35″) and integrated fume extraction system, this machine is ideal for the workshop looking for a durable, easy to use solution for high-speed, precision production. The variable height working area (Z-axis) on this, and all our CO2 laser machines allows you to work on material over 8″ tall.

Which laser configuration is best for me?

You should choose single laser configuration if your primary needs is processing work pieces larger than half of the working table.

Dual laser systems include two laser heads, allowing you to cut or engrave twice as much material in the same amount of time. Each laser has an independent set of laser source, optics and power supply which you can enable or disable according to processing needs. The spacing between the heads can be adjusted at any time using just a screwdriver.

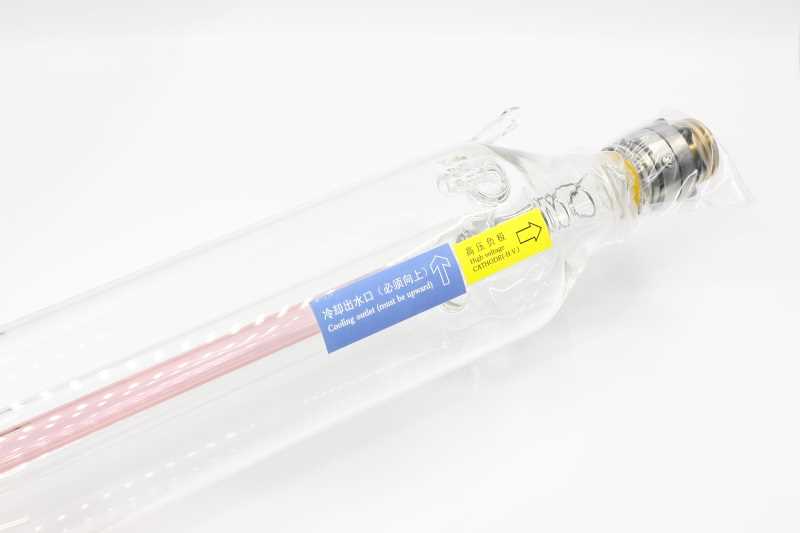

130W CO2 laser is the most cost effective choice for cutting (can cut acrylic up to 1" in thickness). 150W CO2 laser is best suitable for cutting ultra-thick materials (can cut acrylic up to 1-1/4" in thickness). While 100W CO2 laser is better choice for precise engraving and cutting a little thin material (can cut acrylic up to 3/4" in thickness).

Which laser configuration is best for me?

You should choose single laser configuration if your primary needs is processing work pieces larger than half of the working table.

Dual laser systems include two laser heads, allowing you to cut or engrave twice as much material in the same amount of time. Each laser has an independent set of laser source, optics and power supply which you can enable or disable according to processing needs. The spacing between the heads can be adjusted at any time using just a screwdriver.

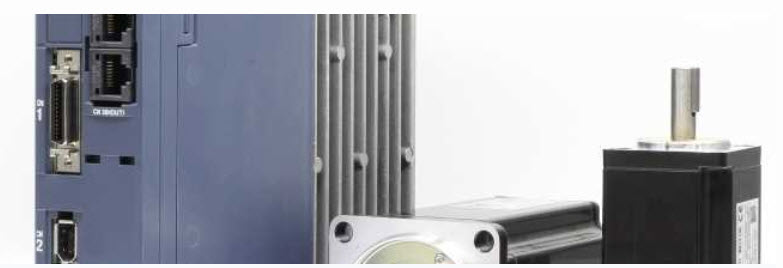

What about motor options?

With servo motors from world’s leading supplier, the laser head of the X-1309 can move very fast at extremely high resolution. A step size of just 6.25μm gives the machine a resolution of over 4000DPI. In arbitrary-direction cutting, the head can accelerate at 2 m/s2 (0.2G), while for X-axis scanning during engraving, acceleration up to 20 m/s2 (2G) is possible. The X-1309 with high quality stepper motors sacrifices only a small amount of performance.

Crate DIM's: 82x72x50" , ~1200lbs

Note: All features marked with * depend on configurations of the laser machine.

Technical Specifications

Note: All specifications marked with * depend on configurations of the laser machine.
