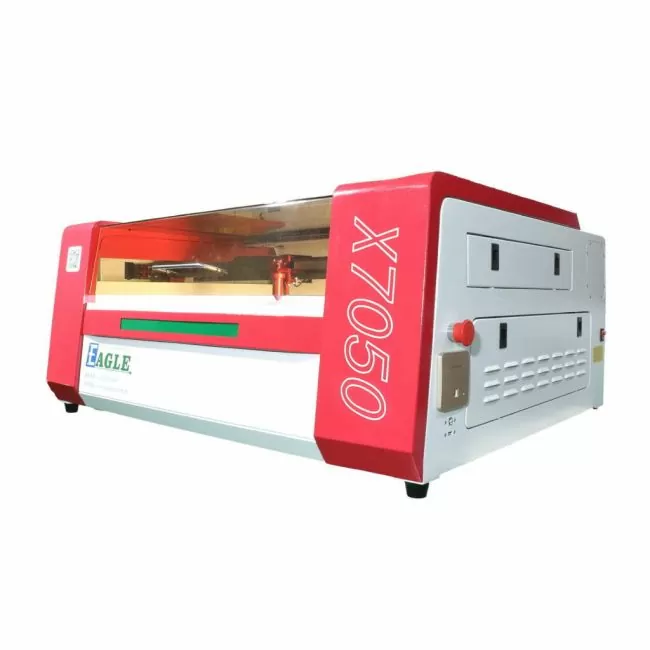

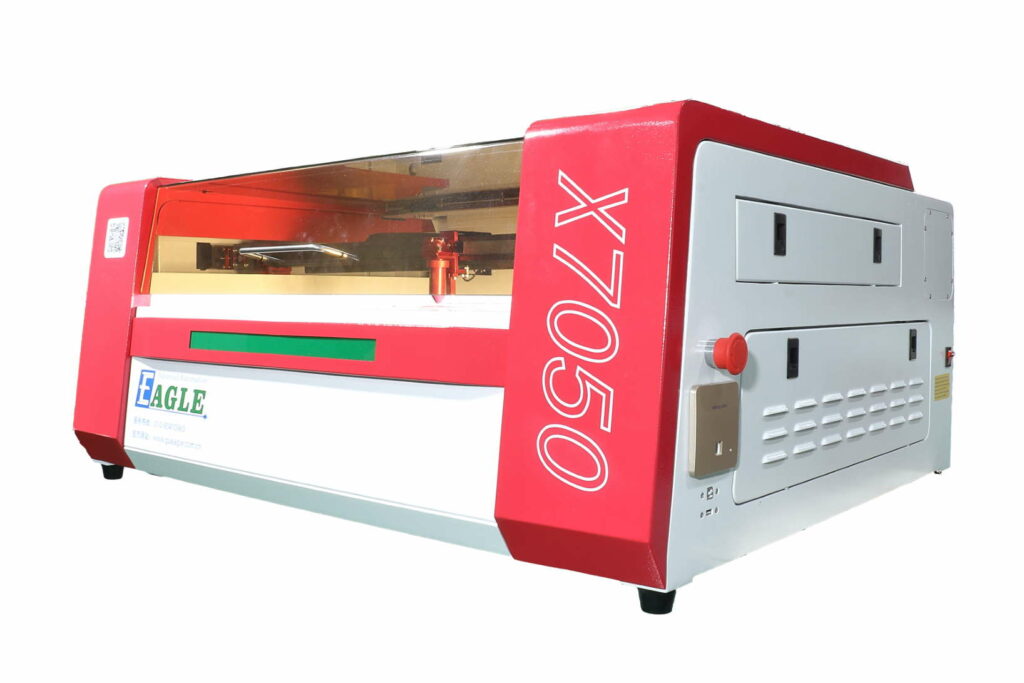

X-7050 DESKTOP LASER ENGRAVING MACHINE

Our desktop CO2 laser engraving machines offer a portable desktop solution for high quality engraving and cutting of acrylics, cardboard, wood, textiles, two-color sign laminate, stone, and much more. Our laser machines are the most robust, accurate, and reliable on the market.

The X-7050 desktop laser engraving machine, with 27.5″ x 19.5″ (700 x 500mm) working area, offers a portable desktop solution for high quality engraving and cutting of acrylics, cardboard, wood, textiles, two-color sign laminate, stones and much more. Our laser machines are the most robust, accurate, and reliable on the market.

Portable Size

With 43.3″ x 37.4″ x 18.5″ (1100 x 950 x 470mm) dimension, you can put the X-7050 on a table comfortably, or on our optional stand.

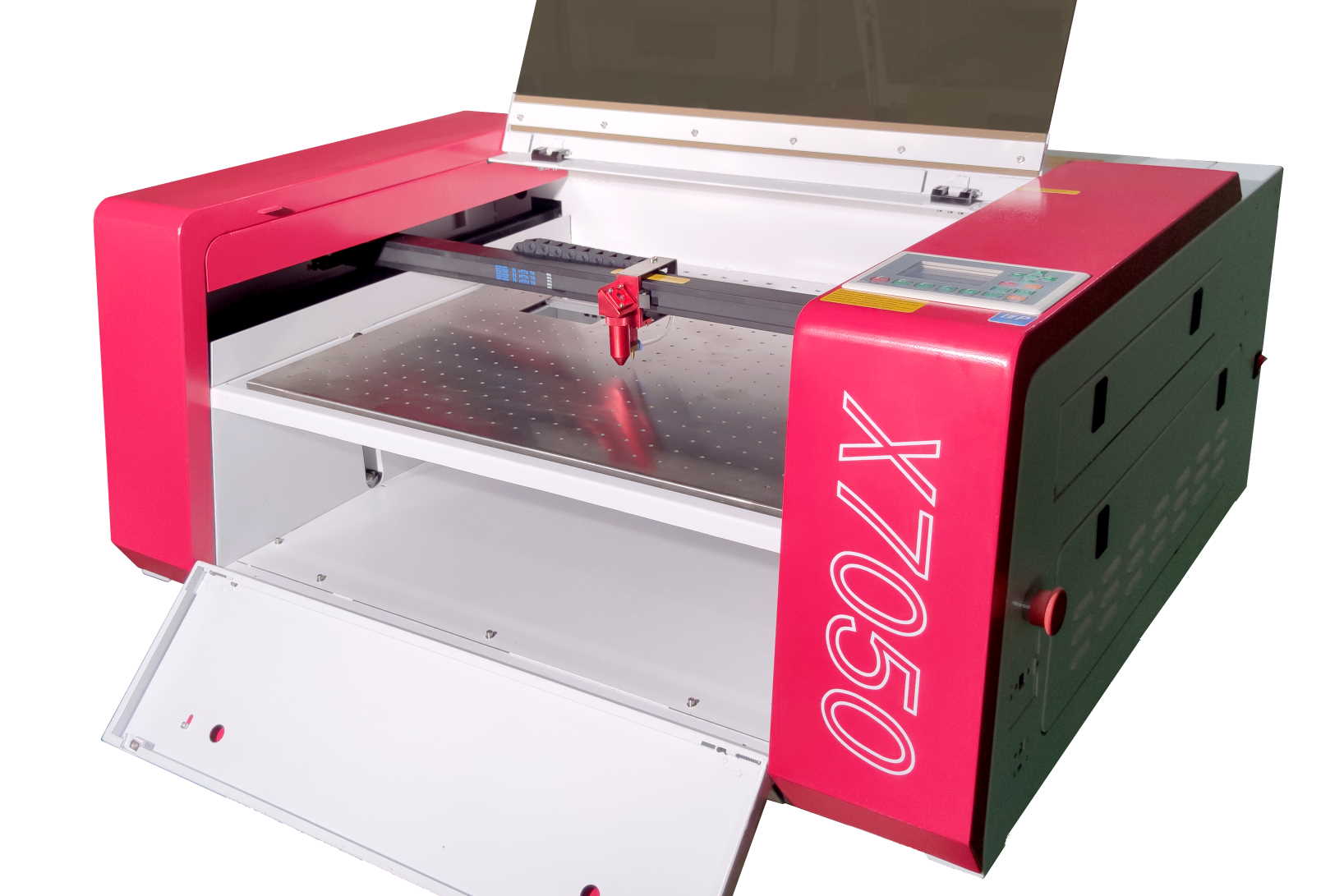

Motorized Working Table And Front-Door Table Access

The working table of the X-7050 features powered up and down movement, to accommodate material with different thickness or abnormally shaped work pieces.

With an openable front door, you can put work pieces or sheet of material onto the working area quickly and easily.

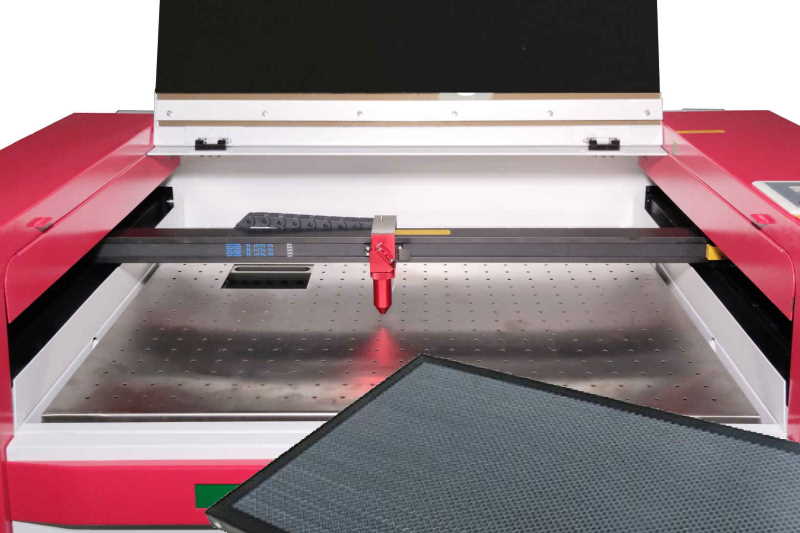

Choice of Support Tables*

We provide both a stainless steel plate table for laser engraving, and a full-support honeycomb table for laser cutting.

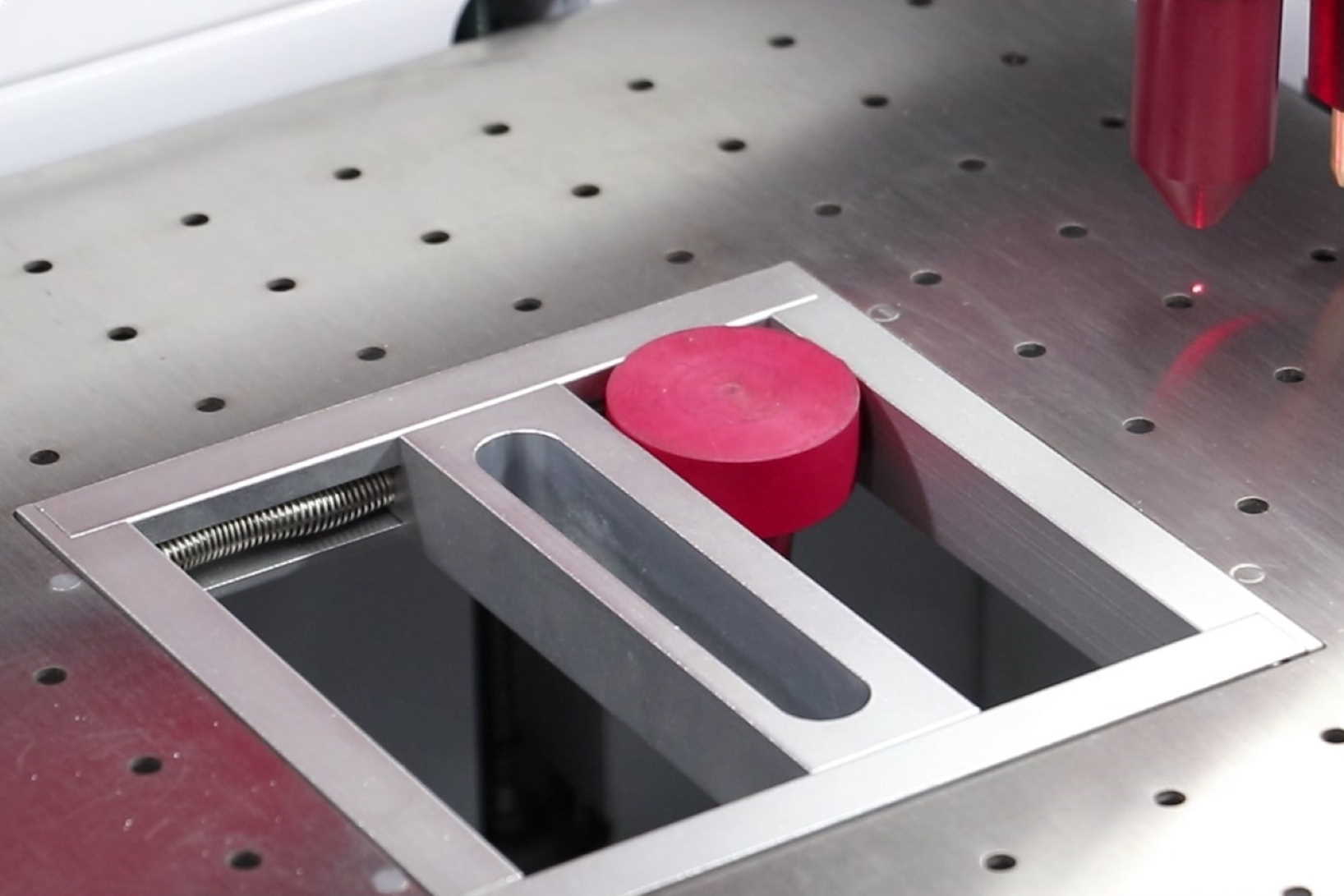

Work Piece Fixing Framework

The working table of the X-7050 features a work piece fixing framework, to accommodate abnormally shaped work pieces, like rubber stamps, and fix them tightly to avoid shaking while engraving.

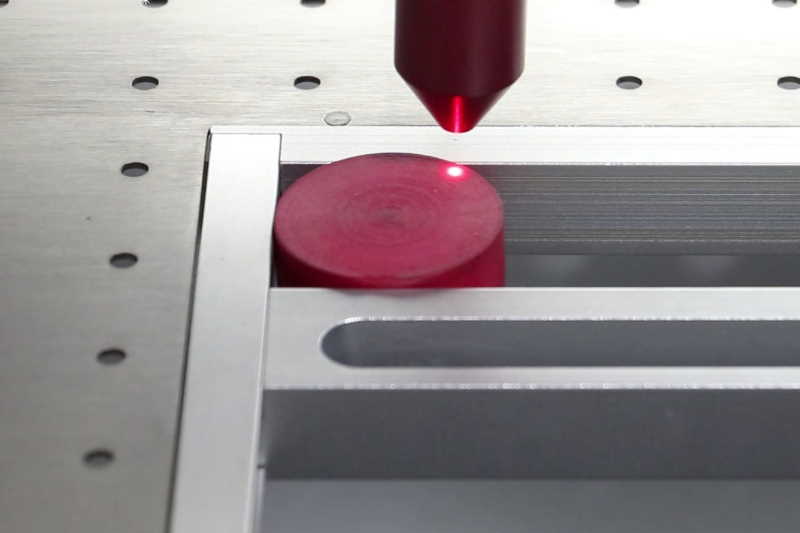

Visible Red Dot Pointer

Since the CO2 laser beam is invisible, the red dot pointer on the X-7050 allows you to have a visual reference for locating where the laser will fire.

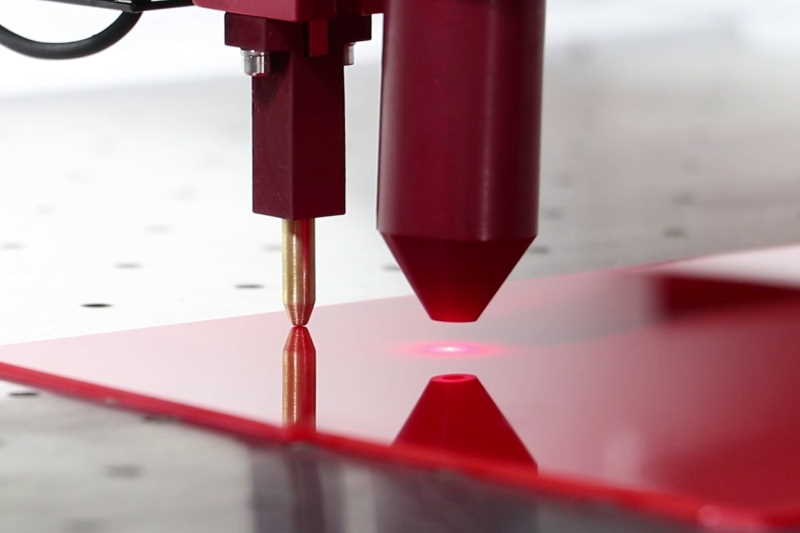

Automatic Focusing

Automatically sets the right distance between the laser head and the material to be processed, achieve the highest detail laser engraving and cutting.

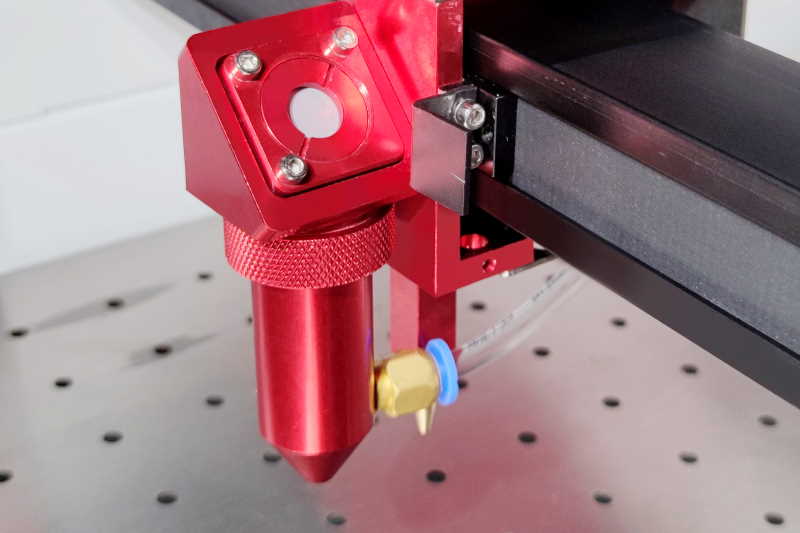

Air Assist Mechanism

The laser head includes an air assist assembly. A constant stream of compressed air protects the lens from dust or cutting vapor, and sweeps the cutting surface, reducing the possibility of flaming, scorching, or charring when cutting materials such as acrylic or wood.

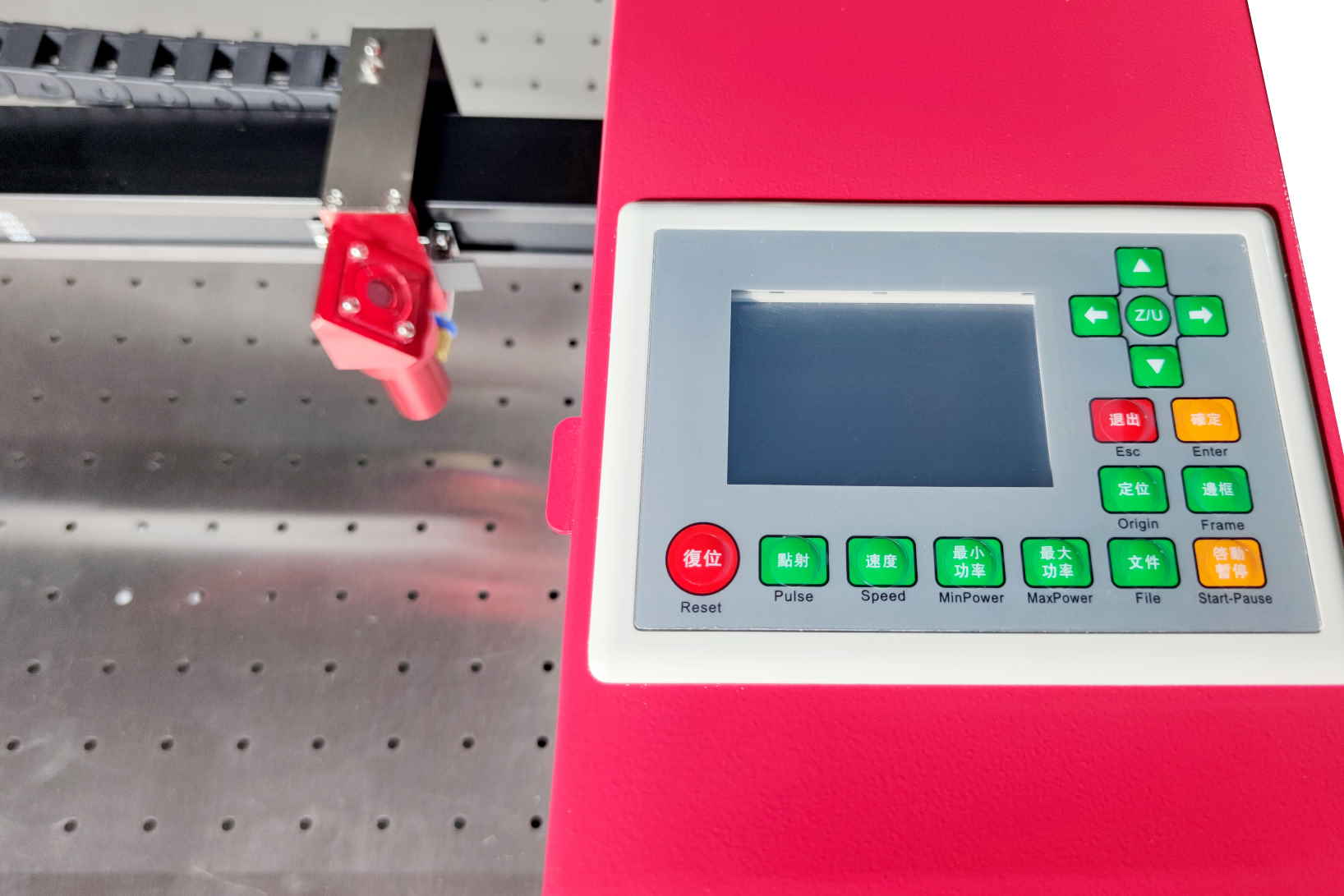

Front Panel Display and Controls

The laser machines are equipped with a high performance control system with a user-friendly interactive panel.

The high-resolution, true color TFT LCD panel lets you preview machine status and job details before processing. You can adjust parameters for different materials, or even run a processing simulation on the panel.

While processing, you will see real-time status information on the panel, and you can adjust parameters on the fly according to the results you are seeing.

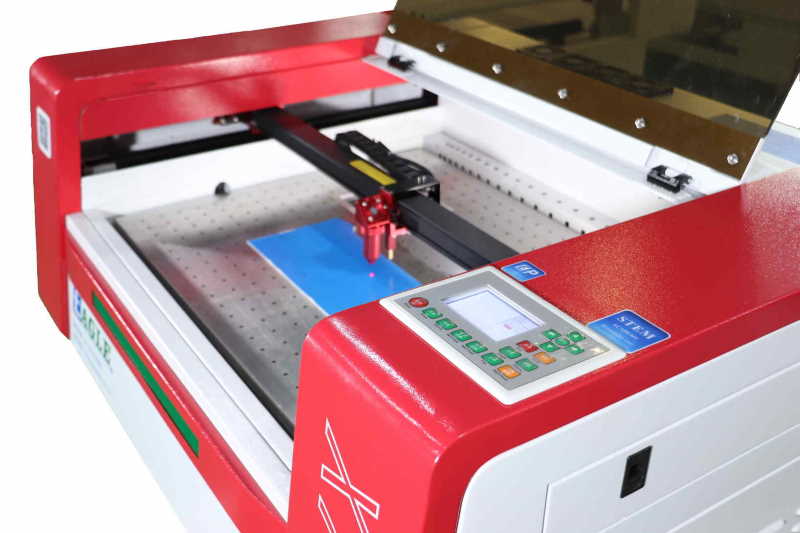

Reliable Off-line Operation and Hot Restart

If there is a power failure or the emergency stop is hit, all configuration and job status information is automatically saved. After the problem is cleared, engraving or cutting can resume exactly where it left off, preventing material wastage.

Embedded flash storage in the controller lets you transfer jobs to the machine, and finish processing offline without relying on a connection to your PC.

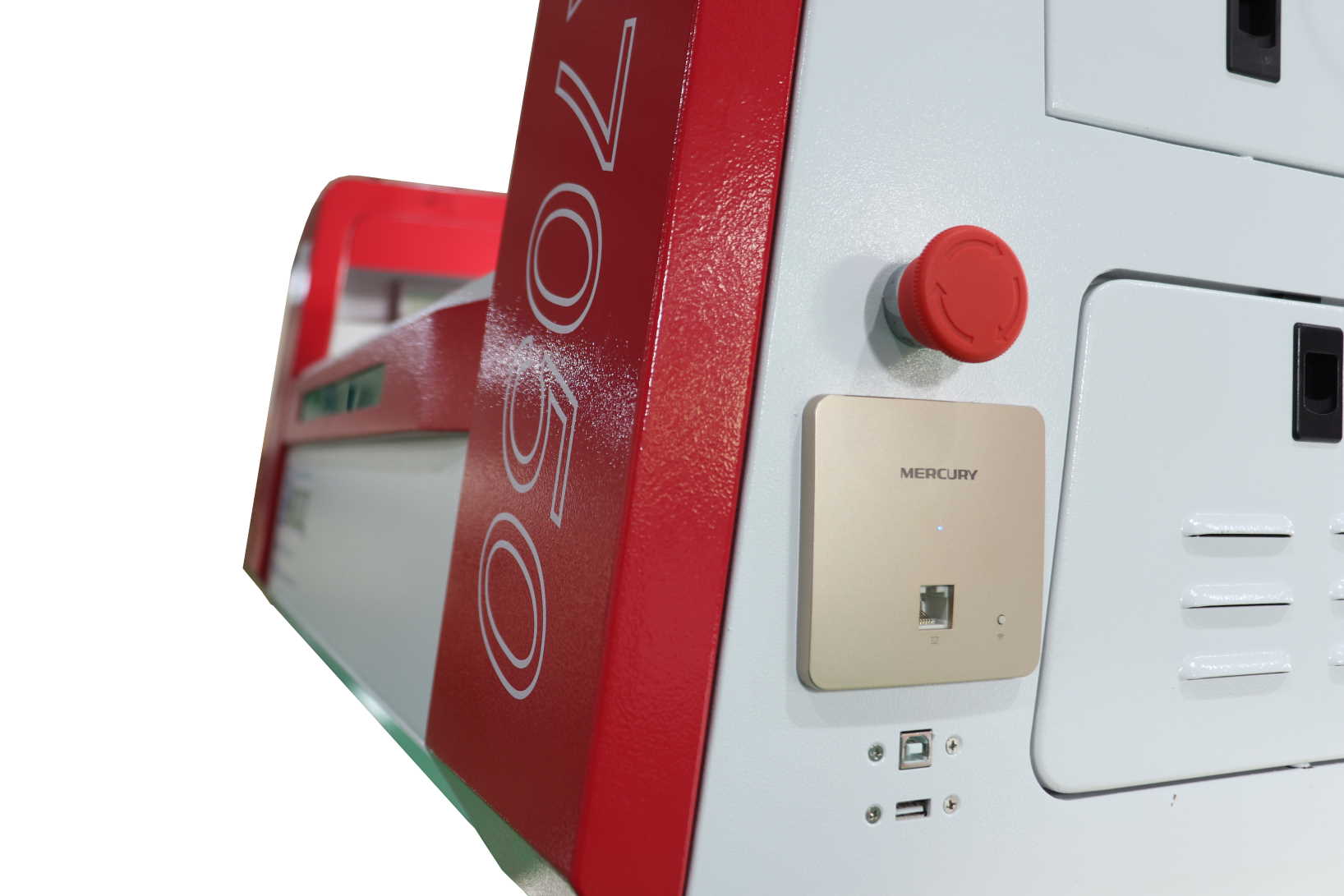

Network Your Laser

The X-7050 comes with USB, Ethernet as well as WLAN support to connect the machine to your PC. You can also transfer jobs by flash drive without an active connection.

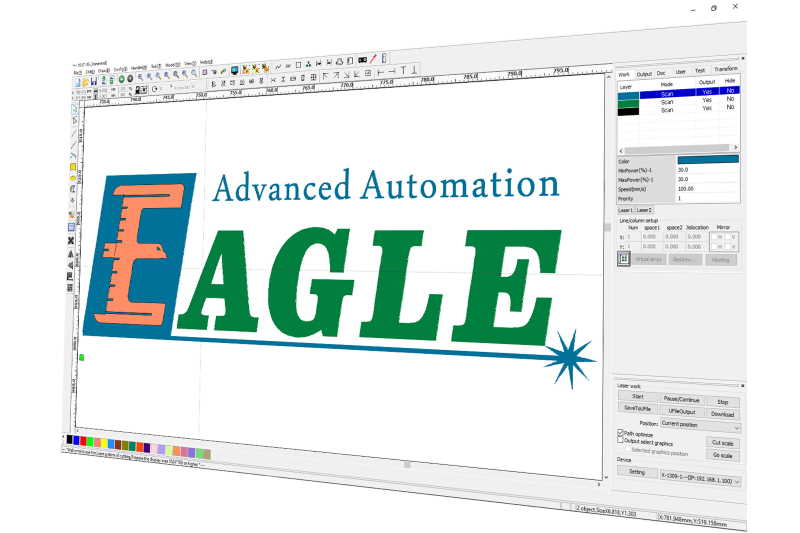

Design and Machine Control Software

We supply your machine with EagleWorks, a complete software solution for creating, editing, optimizing, and processing patterns for laser engraving and cutting. You can import a design from your favorite CAD or illustration program, or create an original design with the EagleWorks software. Then you can adjust the engraving/cutting order, specify the layout within the processing area of the machine, run a processing simulation, and finally control the machine directly from inside the software running on your PC.

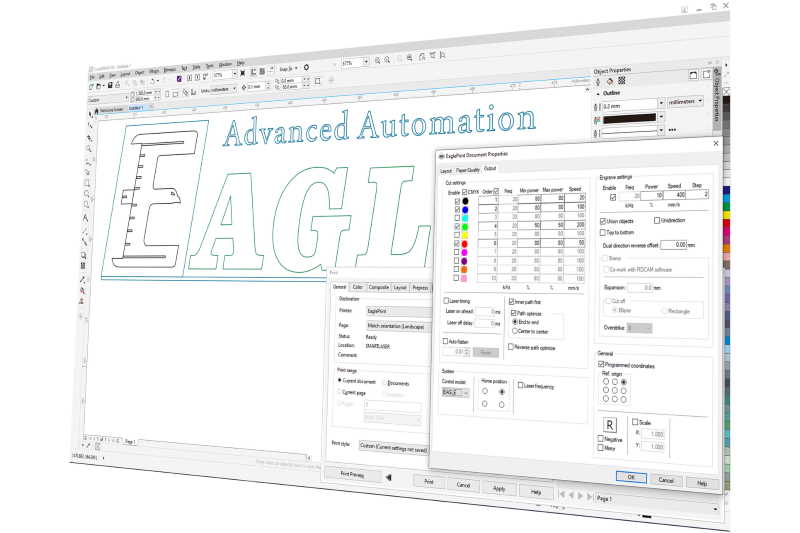

Print Driver

As an alternative to using the EagleWorks software, you can run the machine directly from within your favorite CAD or illustration program using our print driver. This software makes the laser machine look to your computer as if it were just another printer, to which you can “print” from any application, including AutoCAD, Adobe Illustrator, Photoshop, CorelDRAW, etc.

When controlling the machine through the print driver, you use color and line thickness settings in the drawing to control the laser power (cutting vs. engraving) and the order of cutting. This allows you to easily combine cutting and engraving in a single job, for faster processing and more precise control of the laser.

Half-toned photographs and other images can be laser-engraved by “printing” directly from inside your favorite image editing software. When using software that supports both raster images and vector drawing (e.g. Adobe Illustrator, CorelDraw, etc) a simple one-step Print command can do both cutting and engraving simultaneously.

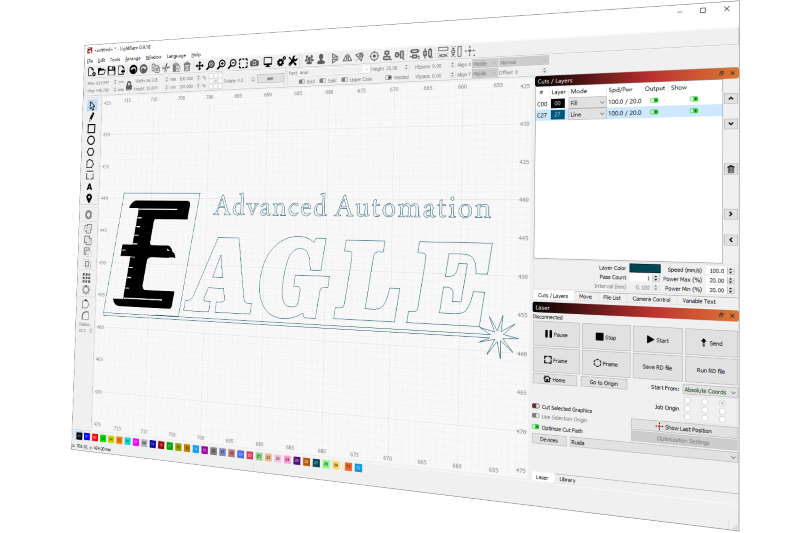

100% Compatible With LightBurn

LightBurn is layout, editing, and control software for your laser cutter. With LightBurn you can:

• Import artwork in a variety of common vector graphic and image formats (including AI, PDF, SVG, DXF, PLT, PNG, JPG, GIF, BMP)
• Arrange, edit, and even create new vector shapes within the editor, with powerful features like offsetting, boolean operations, welding, and node editing
• Apply settings like power, speed, number of passes, cut order, brightness & contrast, dithering mode, and much more
• Send the result directly to your laser cutter

LightBurn is a native application written for Windows, Mac OS, and Linux, and talks directly to the laser, without the use of additional software.

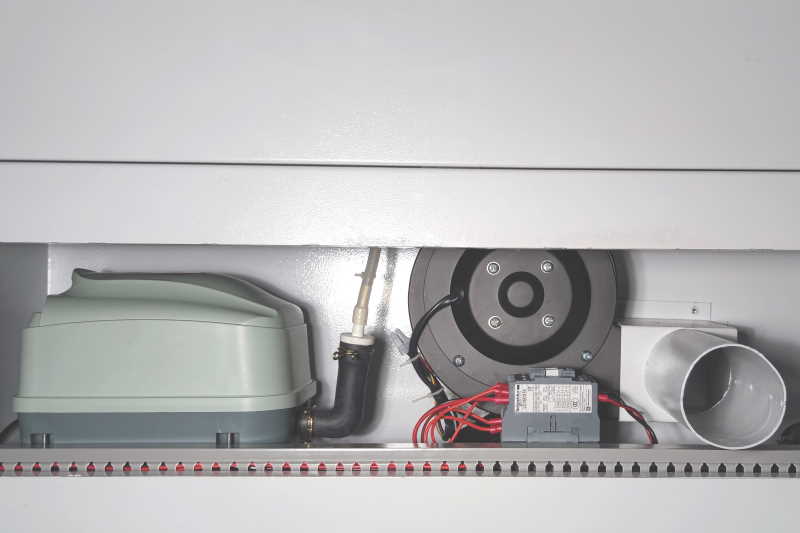

A Complete Set of Accessories Integrated Inside

With all necessary parts integrated inside, there’s nothing but connecting power to get your machine up and running.

We supply all the ductwork needed to vent the machine to the outside.

Just connect it all together and you are ready to run your first job!

Note: All features marked with * depend on configurations of the laser machine.

Note: All specifications marked with * depend on configurations of the laser machine.
