X500-III Pro

Purex Fume Extraction System

GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum capacity, compact design and long life expectancy are just a few of its outstanding features. Powered by a maintenance-free, continuous-running turbine, the Fume Extraction System, which is CE-compliant, ensures personnel safety and legal compliance.

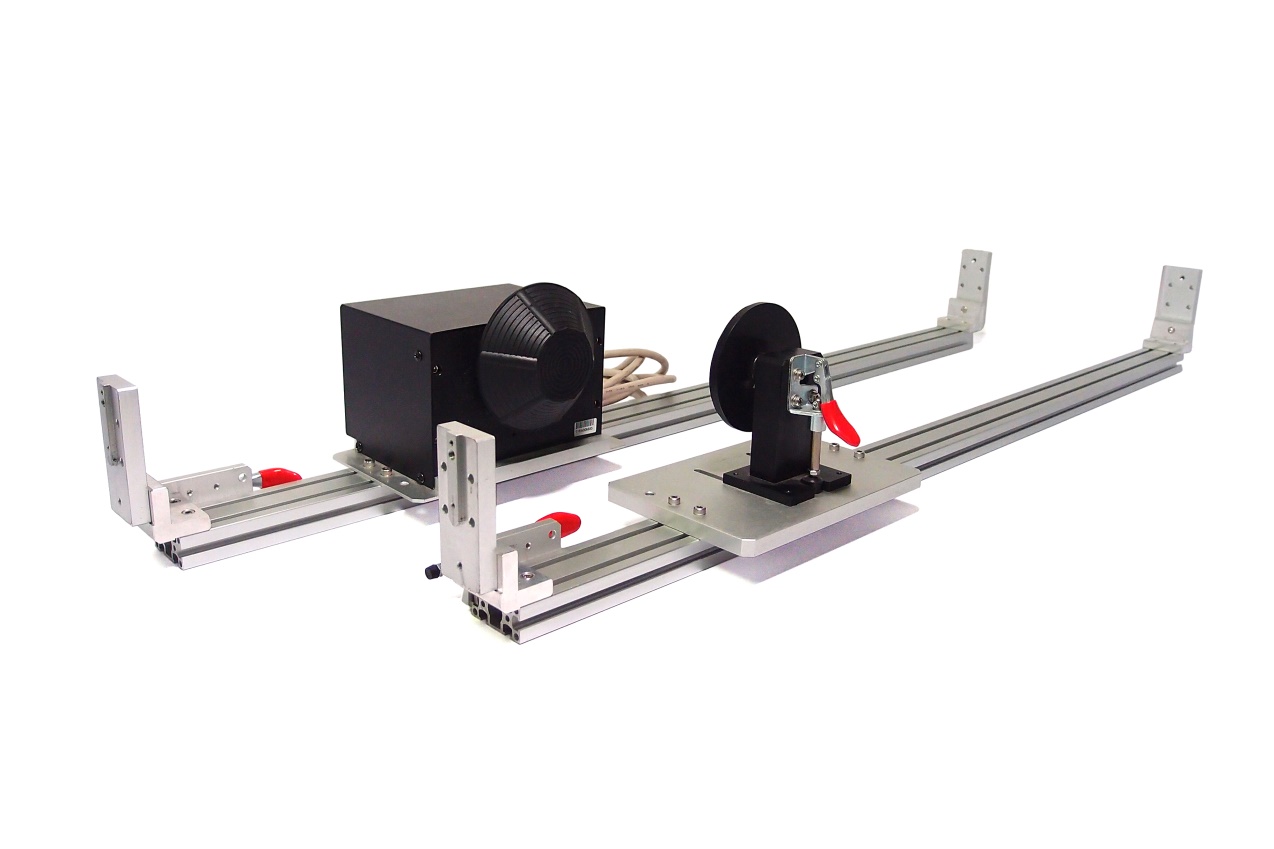

X500 III Rotary Attachment

Pass-through Door Switch Module

The Pass-through Door Switch Module is designed to activate the laser when the door is open which conforms to the CDRH safety required by FDA.

Aluminum Grid Cutting Table

The aluminum grid cutting table is an ideal pal for laser cutting. It lifts the workpiece off the work table from hitting by laser reflection while supports it with a reinforced aluminum grid design. The dust and vapor created during laser cutting are then taken away effectively through the grid by a down vacuum funnel exhaust. Rather than handling rigid materials, the aluminum grid cutting table also helps to fix flexible materials with the aid of a down vacuum to keep constant focus distance and consistent cutting results. A clean and better cutting quality is achieved from this technique.

Aluminum Grid Cutting Table

The aluminum grid cutting table is an ideal pal for laser cutting. It lifts the workpiece off the work table from hitting by laser reflection while supports it with a reinforced aluminum grid design. The dust and vapor created during laser cutting are then taken away effectively through the grid by down vacuum exhaust (suggested using SmartBOX™ together). Rather than handling rigid materials, the aluminum grid cutting table also helps to fix flexible materials with the aid of down vacuum SmartBOX™ to keep constant focus distance and consistent cutting result. A clean and better cutting quality is achieved from this technique.

Air Extraction System - T500, X500III

To accomplish strong vacuum ventilation requirements for industrial application, GCC LaserPro X500III and T500 are recommended to supply a more powerful air extraction unit with an 8” opening to reach the optimum cutting quality. The air extraction system powered by a maintenance-free turbine takes out the fume and dust generated during laser processing efficiently and effectively, leaves a quality cutting edge and clean operation environment.

External Interface Control Board

The External Control Interface Board is an optional item that allows users to set up GCC laser machines for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.

Supporting Pin Kit

This design can firmly hold up the working object preventing it from falling off; moreover, it can effectively reduce the possibility of the reflected laser hitting the working object.

Air Compressor

A specially designed Air Compressor for laser engravers, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must keep lenses and mirrors clean to promote longer laser life.

SmartGUARD™ Fire Alarm (Patented)

Laser cutting and engraving operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut down the operating system immediately.

Honeycomb Table

A honeycomb table is an ideal tool for laser cutting, especially when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection while supports it with a honeycomb cell design. The dust and vapor created during laser cutting are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of a down vacuum to keep constant focus distance and consistent cutting results. A clean and better cutting quality is achieved from this technique.

X500III Brochure Download

Warranty Policy is Effective from 01/01/2019

GCC, a global forefront equipment-manufacturing provider in the visual communication industry, is pleased to announce New Product Warranty Policy. The warranty period for new qualifying machine purchases will be counted from Installation Date provided the following conditions are met.

The condition and workflow have been displayed below :

1. New Product Warranty Policy is applied to machine shipped from GCC in 2019.
2. When the machine sold to end user, it is important to advise end user immediately to link to the GCC’s club http://gccf.gcc.com.tw/gccclub/login.aspx  to sign up and input the machine Serial number and their basic data to activate the machine warranty. Then the warranty of this specific serial number of machine will be changed from the invoice date to data input date (i.e., Purchasing Date that end-user purchases machine)
3. However, the max. Periods for end user to activate the machine warranty is 180 calendar days from invoice date.  If machine fails to be registered within this 180 days period, there will be no any extended warranty and the machine warranty period will be by default still from the invoice date.
4. Warranty for Consumable item, Optional item and Spare parts are counted from GCC Invoice Date without change.
