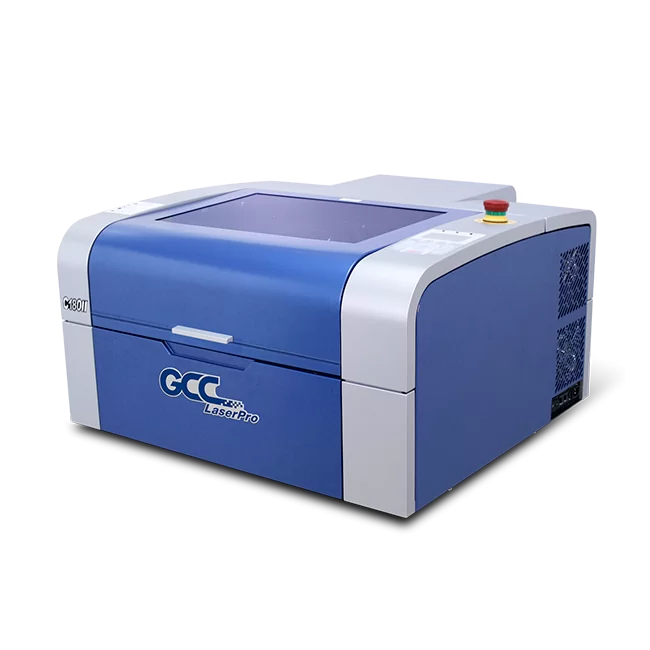

C180-II Laser Engraver. Underneath the C180's stylish exterior is a full 18" x 12" (458 x 305 mm) working area.

Features

	DFARS “Made in America”
	Reliable and Made in USA CO₂ Lasers The CO₂ laser tube is the most critical component of a laser engraver. GCC LaserPro offers the best and most reliable CO₂ laser available in the industry. Synrad CO₂ lasers are built in the United States with the most advanced laser technology. The laser product is proven to be the most reliable brand with tens of thousands of installations all over the world. read more... *some wattage may use different brand of laser tube
	RoHS Compliance All GCC products are RoHS-compliant (the European Parliament Directive 2002/ 95/ EC, Restriction of Hazardous Substances) and lead-free (pb free). GCC will continue to concern and provide environmentally friendly products to protect the earth for our further generation.
	Closed-loop DC Servo Motor and Reliable Motion System The C180II utilizes high performance Closed-loop DC servo motors for precise and fast carriage movement combined with a reliable motion system to produce exceptionally accurate outputs.
	TrueImage (Patented) Patented TrueImage feature presents image engravings in its most vivid form by employing a uniquely designed laser firing algorithm.
	Open Front Door Design The top cover coupled with the front door open design allows easy loading of working pieces.
	Drag-N-Play An exceptionally innovative and user-friendly feature based on servomotor technology simplifies operations and shortens setup time. Simply hand drag the lens carriage to the desired position to be engraved and press the start button to commence job.
	Simple and Intuitive Control Panel TA user-friendly menu-driven interface system simplifies operation. Hot keys design and job status display facilitates your work and makes it clear and easy to carry out.
	SmartPIN™ AutoFocus (Patented) The plug and play probe design makes focusing a one-touch process and provides the accuracy and precision required for optimum quality even on transparent materials.
	Dust Protection Design (Patented) Dust protection covers around working table to provide marvelous exhaust vacuum together with Smart Vacuum design, and prevention dust accumulated on laser system.
	Programmable Origin Modes Easy to use position modes allow the operator an effortless way to setup a job. Repetitive workflows can be drastically simplified by relocating the origin position to any desired location.
	Internal LED Lighting Internal LED lighting illuminates the working space giving a clear view of the work in progress. Big red button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide highly safety operation.
	Emergency Stop Big red button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide highly safety operation.
	Built-in SmartBOX™ The built-in SmartBOX™ feature produces a downward pulling force to keep light items in place creating a stable working environment.
	SmartCENTER™ (Patented) The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.
	Smart Vacuum Smart vacuum adjustment is a fantastic design which allows users to choose top or bottom ventilation according to their demands.
	Job Preview Function The GCC LaserPro laser engraver all series printer driver features a job preview function that previews graphics before the official laser printing process. One of the highlights of this feature is that it provides an estimated working time*. The estimated working time is an easy tool for operators to know in advance as how much time will be needed to finish the job for better job management; it is also convenient for a shop to provide a quotation for its laser services.
	SmartPRINT™ (Optional) The GCC LaserPro SmartPRINT™ software features powerful functions, an intuitive interface and embedded GCC LaserPro laser parameter setting for both MAC and Windows users....MORE SmartPRINT™ Flyer Download
	Bridge Cutting Bridge Cutting function diversifies the laser cutting into packaging prototyping and fulfill versatile requirements. Define the cutting gap to create the dashed line effect from user friendly print driver interface. Bridge Cutting online Video
	GCC, a global forefront equipment-manufacturing provider in the visual communication industry, is glad to introduce SmartTRAY™ for its LaserPro C180II laser engravers. There is no troublesome installation process but extraordinarily optimized ventilation structure and aerodynamic designs. SmatTRAYTM even provides air ventilation all over the working area, directing the dust to the downward ventilation for immediate removal. SmartTRAYTM is the best pal when working with MDF, rubber, wood, paper, and other materials .

Main

GCC C180-II Table Top Laser, 12w+, 30w+ or 40 Watts+ Sealed CO2 Laser, With Standard: Red Pointer, Air Assist, Automatic Focusing of Z Axis & Two (2) Year Parts Limited Manufacturer's Warranty
Work Area: 18"x12" (458mm x 309mm)

Specs

Specifications

Laser Source

Powered by a 12w-Synrad, 30w-Synrad & 40 Watt-Coherent Sealed CO₂

Working Area

18 in. x12 in. (458 mm x 309 mm)

Max. Work Piece

18 in. x 12 in. x 6 in. (505 mm x 309 mm x170 mm)

Rotary Attachment: ~3 3/8" Max. Diam. with a Min. Dia. 3/8"

Table Specs

20.5 in. x14.8 in. (520 mm x 375 mm), Aluminium

Overall Dimensions

28.3 in. x 25.2 in. x 14.8 in. (720 mm x 640 mm x 385 mm)

Weight

12w @ 156 Lbs & 30/40w @ 168 Lbs (machine only)

Drive

DC Servo Control

Speed Control

Available from 0.1~100% with up to 16 colors linked speed setting per job

Power Control

Available from 0.1~100% and 16 colors linked power setting per job

Z Axis Moving

Automatic

Resolution (DPI)

Available 125, 250, 300, 500, 600,760, 1000

Computer Interface

Standard printer port and USB port

MCB Controller Memory

32-MB RAM, Expandable from 64-MB to 32-GB External

Lens

Standard 4.0" focal lens in enclosed lens carriage; optional lenses available. (2")

Display Panel

4-line LCD display showing current file name, total working time, laser power, engraving speed, files loaded into memory buffer, setup and diagnostic menus

Safety

Class IIIR for red pointer

Facility Requirements

Electricity

100V-240 Volt AC Auto Switching

Power Consumption

900W-1320W

Exhaust Sytem

External exhaust system required , one 2" connection on the back of the machine

*Above specifications are subject to change without notice.

C180 Rotary Work Piece Limitations

Model

C180

C180S

Maximum Length

250 mm (10.0")

Maximum Loading Weight

5 kg ( 11 lbs.)

Minimum Diameter (Small Conical)

12 mm (0.5 inches)

12 mm (0.5")

Maximum Diameter (Small Conical)

50 mm (1.9")

Minimum Diameter (Large Conical)

90 mm (3.7")

x

Maximum Diameter (Large Conical)

125 mm (5")

x

Warranty

Warranty Policy is Effective from 01/01/2019

GCC, a global forefront equipment-manufacturing provider in the visual communication industry, is pleased to announce New Product Warranty Policy. The warranty period for new qualifying machine purchases will be counted from Installation Date provided the following conditions are met.

The condition and workflow have been displayed below :

New Product Warranty Policy is applied to machine shipped from GCC in 2019.
When the machine sold to end user, it is important to advise end user immediately to link to the GCC’s club http://gccf.gcc.com.tw/gccclub/login.aspx to sign up and input the machine Serial number and their basic data to activate the machine warranty. Then the warranty of this specific serial number of machine will be changed from the invoice date to data input date (i.e., Purchasing Date that end-user purchases machine)
However, the max. Periods for end user to activate the machine warranty is 180 calendar days from invoice date. If machine fails to be registered within this 180 days period, there will be no any extended warranty and the machine warranty period will be by default still from the invoice date.
Warranty for Consumable item, Optional item and Spare parts are counted from GCC Invoice Date without change.

Documents

Power Supply Changing Process

Motor Changing Process

Main Board Changing Process

Control Panel Changing Process

Video

GCC You Tube Demo Video Link: GCC LaserPro C180-II 30 Watt QR Code Testing

GCC You Tube Demo Video LInk: GCC C180II Laser Engraver Offitek

GCC You Tube Demo Video Link: Personalize a Cell Phone Case with a Laser Engraver from Jorlink USA, Inc.

GCC You Tube Demo Video Link: GCC laserpro C180II engraving

Tube Comparison
